HL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi Antennas

Shenzhen Huasifei Technology Co., Ltd.
Contact Now
    Buy cheap HL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi Antennas from wholesalers

    Buy cheap HL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi Antennas from wholesalers
    • Buy cheap HL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi Antennas from wholesalers
    • Buy cheap HL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi Antennas from wholesalers

    HL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi Antennas

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : HL7621-5G
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    HL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi Antennas

    HL7621-5G 5g Router 12V DC Power 880MHz Frequency Industrial 5g Router


    Product Description

    The HL7621-5G industrial 5G CPE router adopts the MTK (MediaTek) brand new dual core network chip MT7621A solution in hardware, with a main frequency of up to 880MHz. It can calmly face various applications that require CPU processing power, allowing the device to work stably in various complex industrial communication environments.


    Software Support
    This system defaults to the openwrt system and provides the corresponding SDK information.


    Specification


    Main chipMT7621A/ Binuclear /880Mhz
    MemoryDDR3 RAM 256MB (Maximum Support 512MB)
    FLASHSPI FLASH 16MB (Maximum Support 64MB)
    Network card PCIESlot expandable WiFi module
    Wireless ratehigh-power 2.4G: 300Mbps
    Ethernet port5 10/100M/1000M Adaptive network interface, supporting automatic flipping(Auto MDI/MDIX)
    TF card holderTF card holder *1
    USB interfaceUSB2.0*1
    5G interfaceM. 2 interfaces * 1
    4G module interfaceMini PCIE packaging interface * 1
    2 serial portsDebugging serial port * 1485 communication serial port * 2
    Indicator light * 6Power light * 1, 4G light * 1, WiFi light * 1, and other lights can be customized
    button1 * RESET button
    ac adapterDC 12V or above 1.5A
    Size (L * W * H)140mm*101mm*18mm
    Software specifications
    Factory default settings

    IP address: 192.168.1.1

    Password: admin

    Working modeAP; WDS; Clinet;Clinet + AP
    WAN access methodPPPoE, Dynamic IP, Static IP, 3G/4G
    DHCP Server

    DHCP server;

    Client list;

    Static address allocation;;

    Other practical functions

    Mac address cloning

    Import and export of configuration files

    Web software upgrade

    work environment

    Working temperature: -20 to 75 ;

    Storage temperature: -50 to 95 ;

    Storage humidity: 0% to 90% RH non condensing

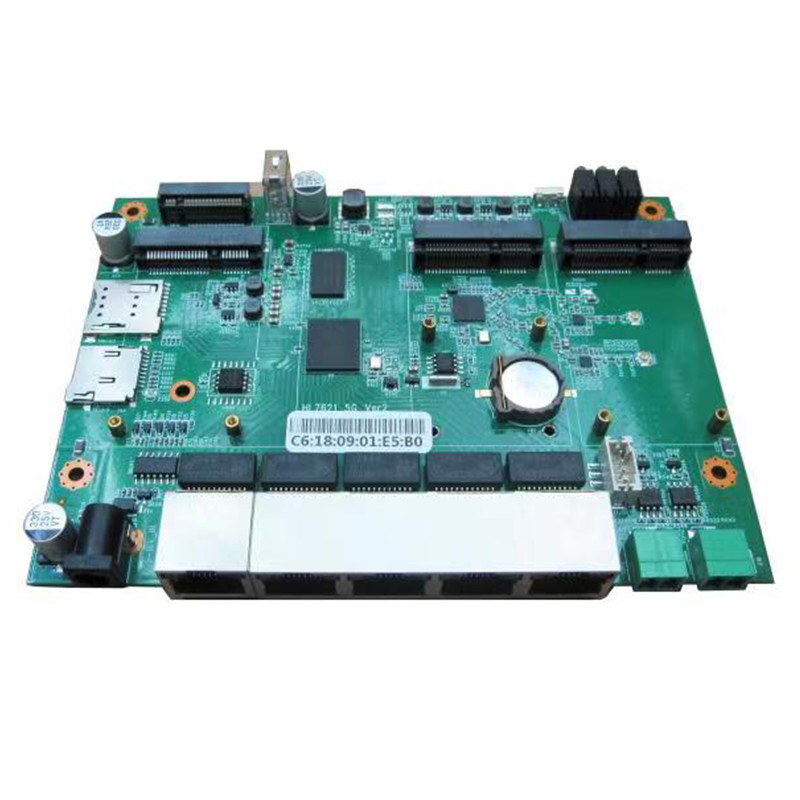

    Details Images

    HL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi AntennasHL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi AntennasHL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi AntennasHL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi AntennasHL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi AntennasHL7621-5G 5G Industrial Router 880MHz Frequency With 6 * 5dBi Antennas

    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
