300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot

    Buy cheap 300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot from wholesalers

    Buy cheap 300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot from wholesalers
    • Buy cheap 300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot from wholesalers
    • Buy cheap 300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot from wholesalers

    300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : HR204
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot

    300Mbps Mobile Router 4g Wifi Chip MTK7621A 4g Wifi Router With Sim Card Slot


    Product Description

    HUASIFEI HR204 wireless router is a wireless communication product developed based on 4G network requirements. Support 4G LTE global frequency band. Support 4G LTE CAT 6 or CAT 12 high speed access to the Internet. It can realize the maximum downlink bandwidth of 300Mbps~600Mbps and the maximum uplink bandwidth of 50Mbps~150Mbps. It supports 2 Gigabit Ethernet ports, providing stable and high-speed wireless broadband access for home and business users. Support for WIFI 2.4GHz/5GHz dual-band function to meet the access and sharing needs of more than 60 users' WIFI hotspots.

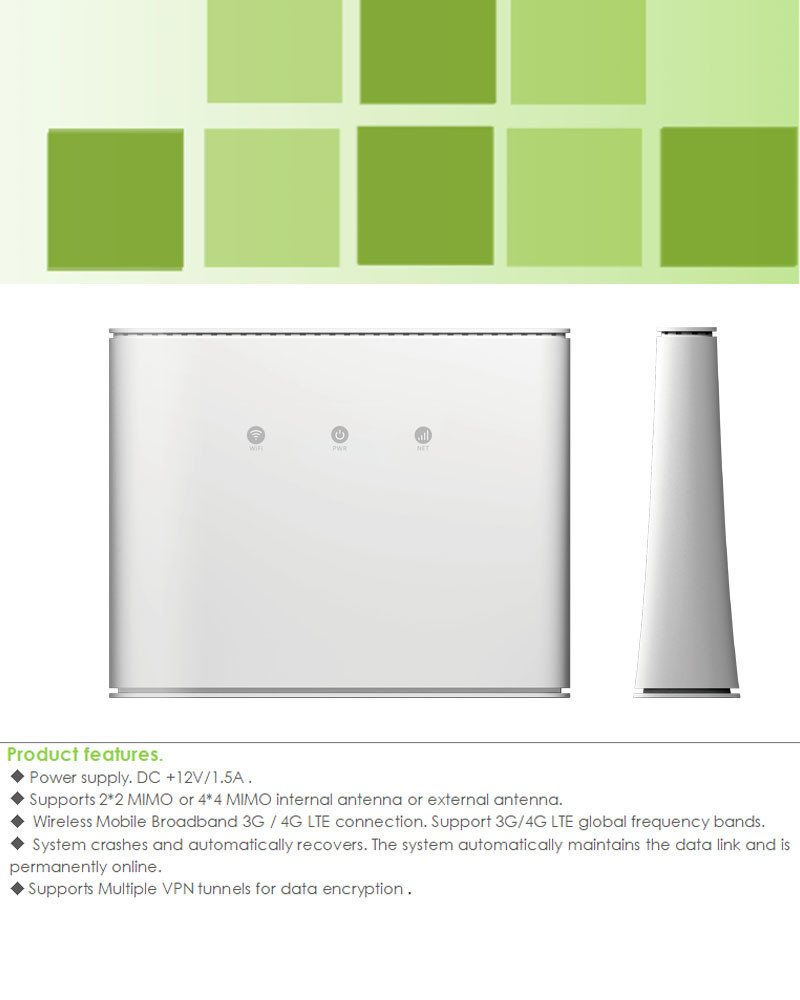

    Product features

    • Power supply. DC +12V/1.5A .
    • Supports 2*2 MIMO or 4*4 MIMO internal antenna or external antenna.
    • Wireless Mobile Broadband 3G / 4G LTE connection. Support 3G/4G LTE global frequency bands.
    • System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
    • Supports Multiple VPN tunnels for data encryption .
    • Simple and beautiful, fashionable shell.

    Easy to use and easy maintenance

    • User friendly web interface for user interaction.
    • Supports Remote Management Platform.
    • Supports local web UI and remote FOTA update firmware.

    Operating system
    Built-in OpenWRT 18.06 operating system. Support user secondary application development.


    Specification

    Cellular feature

    3G/4G LTE

    data connectivity

    It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.

    3G/4G LTE

    Frequency bands

    Version E.

    LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32

    LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional)

    WCDMA: B1/B3/B5/B8

    Verison A.

    LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71

    LTE-TDD: B41/B48

    Version LA.

    LTE-FDD: B2/B4/B5/B7/B8/B28/B66

    LTE-TDD: B42(Optional) /B43(Optional)

    WCDMA: B2/B4/B5/B8


    Remarks. More Bands Demands please contact with us.

    3G/4G LTE Data rates

    4G LTE--CAT 6

    LTE-FDD Max 300M(DL) , Max 50Mbps (UL)

    LTE-TDD Max 226M (DL) , Max 28Mbps (UL).


    4G LTE-CAT 12

    LTE-FDD. Max 600Mbps (DL),Max 150Mbps (UL) .

    LTE-TDD. Max 430Mbps (DL),Max 90Mbps (UL).


    HSPA+.

    DL 42Mbps, UL 11.2Mbps.


    WCDMA.

    DL 384Kbps, UL 384Kbps

    3G/4G LTE

    Transmitting Power

    Class 3 (23 dBm±2 dB) for LTE-TDD bands

    Class 3 (23 dBm±2 dB) for LTE-FDD bands

    Class 3 (24 dBm+ 1/-3 dB) for WCDMA bands


    LTE features

    CAT 6 version.

    Supports 3GPP Rel-12 CAT 6 FDD and TDD

    Supports uplink QPSK and 16 QAM modulation.

    Supports downlink QPSK , 16 QAM and 64 QAM.

    Supports 1.4MHz to 40MHz (2 CA) RF bandwidth.


    CAT 12 version.

    Supports 3GPPRel-12 CAT 12 FDD and TDD.

    Supports uplink QPSK ,16 QAM and 64 QAM modulation.

    Supports downlink QPSK , 16 QAM ,64 QAM and 256 QAM.

    Supports 1.4MHz to 60MHz (3 CA) RF bandwidth.

    UMTS features

    Supports 3GPP Rel-9 DC-HSDPA,DC-HSUPA,HSPA+,HSDPA,HSUPA and WACDMA

    Supports QPSK ,16 QAM and 64 QAM modulation.

    AntennasSupports 2*2 MIMO or 4*4 MIMO internal antenna or external antenna with 50 Ω impedance.
    SIM card feature
    SIM cardSupports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )

    Details Images

    300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot300Mbps Mobile 4G Wifi Router Chip MTK7621A With SIM Card Slot
