Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot

Shenzhen Huasifei Technology Co., Ltd.
Contact Now
    Buy cheap Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot from wholesalers

    Buy cheap Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot from wholesalers
    • Buy cheap Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot from wholesalers
    • Buy cheap Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot from wholesalers

    Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : HR300-5G
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot

    Gigabit Router 5g Lte 12V DC Power Chipset SDX62 Wifi6 Router 5g Sim Card


    Product Description

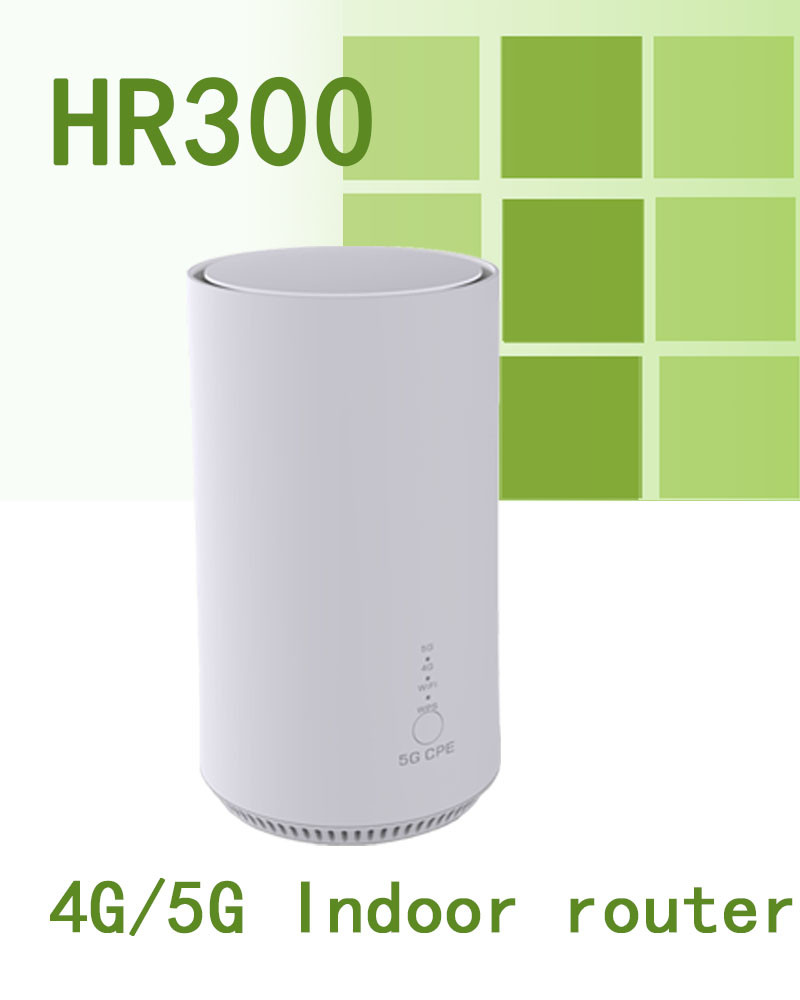

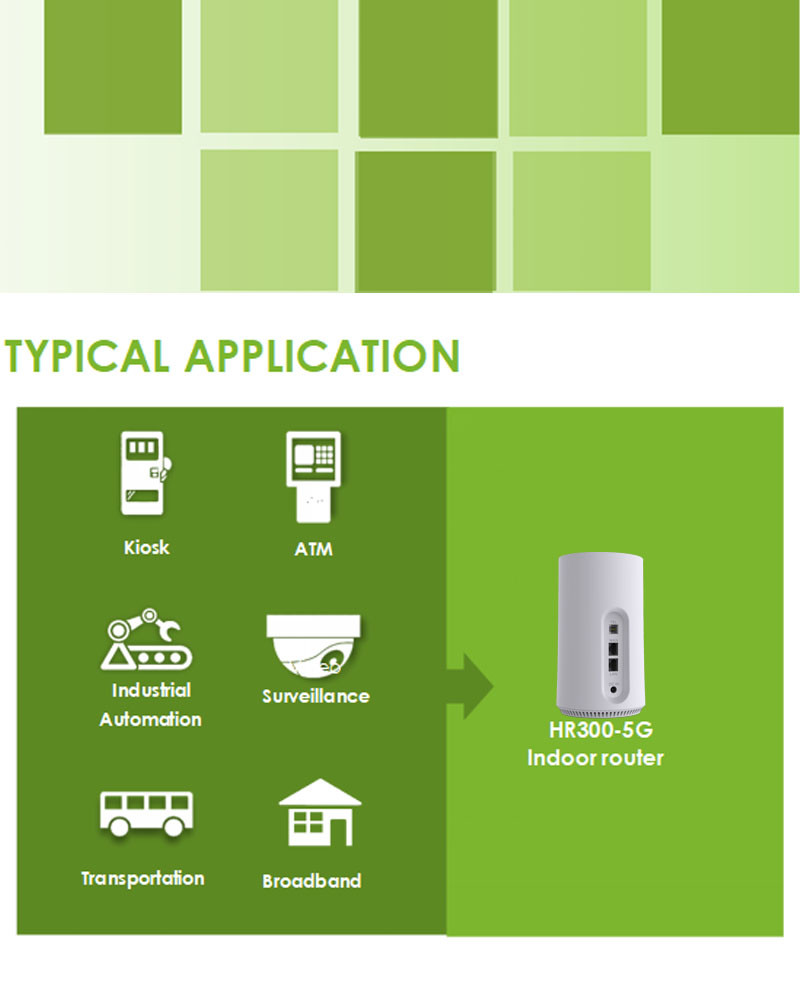

    HUASIFEI HR300-5G Cellular indoor router is a wireless communication product developed based on 3G/4G LTE/5G network requirements. Supports 3G/4G LTE/5G global frequency bands. Supports 3G/4G LTE/5G internet high speed access. Support 5G NSA. Up to 3.4Gbps (DL)/600Mbps (UL) of NSA mode. 5G SA maximum 2.4Gbps (DL)/1Gbps (UL) access bandwidth service. It supports 2 Gigabit Ethernet ports, one RJ11 telephone port, and supports VOLTE voice. Support for 802.11AX WIFI 6E, 2.4GHz/5GHz Tri-band function. And provide users with WIFI 6, AX1800 large bandwidth hotspot sharing. Meet the access and sharing of more than 32 users' WIFI hotspots. Meet the needs of families, enterprises, and chain stores to provide 4G/5G high-speed Internet access services.


    Product features

    • Wireless Mobile Broadband 3G/4G LTE/ 5G Connection. Supports 3G/4G/5G global frequency bands.
    • Compliant with IEEE 802.11a/b/g/n/ac/ax,AX1800,2*2 MIMO WIFI 6, support tri-band 2.4 GHz/5 GHz .
    • System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
    • Supports Multiple VPN tunnels for data encryption .
    • Power supply. DC 12V/1.5A
    • Industrial design for harsh environment.
    • ABS plastic material shell. Novel and fashionable appearance.

    Easy to use and easy maintenance

    • User friendly web interface for user interaction.
    • Supports Central Management Platform.
    • Supports local web UI and remote FOTA update firmware.

    Operating system
    Built-in OpenWRT 18.06 operating system.


    Specification

    Cellular feature

    3G/4G/5G

    data connectivity

    It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA networks.

    3G/4G/5G

    Frequency bands

    • Version E

    5G NR:

    5G NSA:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79

    5G SA:n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79

    LTE FDD:B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32

    LTE-TDD:B38/B39/B40/B41/B42/B43/B46*/B48

    WCDMA: B1/B5/B8


    • Version A

    5G NR:

    5G NSA:n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79

    5G SA:n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79

    LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71

    LTE-TDD:B38/B41/B42/B43/B46*/B48

    WCDMA: B1/B2/B4/B5


    Remarks. More frequency bands or requirements please contact with us.

    3G/4G/5G

    Data rates

    5G NSA. Max 3.4Gbps (DL)/600Mbps (UL)

    5G SA. Max 2.4Gbps (DL)/1Gbps (UL)

    LTE. Max 1.6Gbps (DL)/200Mbps (UL)

    HSPA+. Max 42Mbps (DL)/ 5.76Mbps (UL)

    WCDMA Max 384Kbps (DL)/384Kbps (UL)

    5G NR features

    3GPP Release 16

    Supported modulations:

    - Uplink: π/2-BPSK, QPSK, 16QAM, 64QAM and 256QAM

    - Downlink: QPSK, 16QAM, 64QAM and 256QAM

    Supported SCS: 15 kHz 2 and 30 kHz 2

    SA 3 and NSA 3 operation modes supported on all the 5G band

    Option 3x, 3a, 3 and Option 2

    Maximum transmission data rates 4:

    - NSA: 3.4 Gbps (DL)/ 550 Mbps (UL)

    - SA: 2.4 Gbps (DL)/ 900 Mbps (UL)

    LTE features

    3GPP Release 16

    LTE Category: DL Cat 19/ UL Cat 18

    Supported modulations.

    - Uplink: QPSK, 16QAM and 64QAM and 256QAM

    - Downlink: QPSK, 16QAM and 64QAM and 256QAM

    Supports 1.4/3/5/10/15/20 MHz RF bandwidth

    Maximum transmission data rates . - 1.6 Gbps (DL)/ 200 Mbps (UL)

    UMTS features

    3GPP Release 9, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA.

    Supported modulations. QPSK, 16QAM and 64QAM

    Maximum transmission data rates.

    - HSPA+. 42 Mbps (DL)/ 5.76 Mbps (UL)

    - WCDMA. 384 kbps (DL)/ 384 kbps (UL)


    Antennas4 * 4G/5G internal antenna,4*4 MIMO, with 50 Ω impedance.
    SIM card feature
    SIM cardSupports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )

    Details Images

    Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM SlotGigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM SlotGigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM SlotGigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM SlotGigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot


    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
