8 Ports And 2 100M Electrical Ports POE Switch Industrial Unmanaged
Switch
Product Description
CX-S802F is an unmanaged intelligent PoE switch, equipped with 8
100M electrical ports + 2 100M uplink electrical ports, of which
1-8 ports support IEEE 802.3af/at standard PoE power supply, and
the single-port PoE power reaches 30W. And the PoE port can
automatically detect and identify powered devices that comply with
the IEEE 802.3af/at standard and supply power to them through the
network cable. Non-POE devices can be intelligently detected
without power supply and only transmit data.
It can supply power to PoE terminal devices such as IP phones,
network cameras, wireless APs, video intercoms, and smart homes
through network cables. It is suitable for hotels, schools, factory
dormitories, and small and medium-sized enterprises to form
cost-effective networks.
PoE technology (Power over Ethernet) is Power over Ethernet
technology, which refers to providing DC power supply for some
IP-based terminals (such as IP phones, wireless access APs, network
cameras, etc.) while transmitting data signals. Technology, these
devices that receive DC power are called powered devices.
Product Features
8 100M PoE ports + 2 100M uplink ports
Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
Ethernet port supports 10/100 auto-sensing
Flow control mode: Full duplex adopts IEEE 802.3x standard, half
duplex adopts Back pressure standard
Store-and-forward switching mechanism
Comply with IEEE 802.3af/at PoE power supply standard
Three-speed intelligent dial switch (switch function can be
customized) :
VLAN: Port isolation mode, 1-8 ports realize the isolation of the
downlink ports of the monitoring network, and intercommunicate with
the uplink ports, effectively suppressing broadcast storms,
Protect intranet security.
PoE forced power supply: Ports 5~8 become forced power supply mode,
the power of a single port can reach 30W, and when the power of a
single port exceeds 30W, it will automatically switch off
The power supply of the port will be cut off, and the power supply
will be restored automatically after the port overload is removed.
AI watchdog: PoE watchdog mode, 1-8 power supply ports support PoE
watchdog function, when the port communication fails, the
corresponding port PoE It will restart automatically, reducing
on-site maintenance costs.
The PoE port supports the priority mechanism. When the remaining
power is insufficient, the power supply of the high-priority port
is given priority to avoid overloading of the device.
Ports 1~8 support AI recognition of long distances. When the cable
length is less than 100 meters, the default rate is 100M. When the
cable length is greater than 100 meters, the corresponding port
rate is automatically reduced to 10M. The PoE power supply and data
transmission distance can be extended to 250 meters.
Specification
| Technical Parameters |
| port characteristics |
| fixed port | 8 10/100Base-TX POE ports (Data/Power) 2 10/100Base-TX uplink RJ45 ports (Data) |
| Network port characteristics | 1-10 port 10/100BaseT (X) Automatic detection, full/half duplex
MDI/MDI-X adaptive |
| Network protocol | IEEE802.3 IEEE802.3u IEEE802.3x |
| Backplane Bandwidth | 2.0 Gbps |
| packet forwarding rate | 1.488Mpps |
| packet forwarding cache | 1.25K |
| MAC address table | 2K |
Forwarding mode | store and forward |
| Twisted pair transmission | 10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| LED indicator | Operation indicator: Sys (green); Network indicator: Link (green) |
| Special feature |
Function switch (customizable)
| SW1: VLAN |
| SW2: Force Output |
| SW3: Watchdog |
| PoE and Power Characteristics |
| PoE power supply standard | 1-8 ports support IEEE802.3af/at standard PoE power supply |
| PoE power supply pin | 1/2(+), 3/6(-) |
| PoE maximum single port/average power | AT-30W / AF-15.4W |
| total power | 120W |
| Overall power consumption | Standby power consumption: <3W; full load power consumption:
<120W |

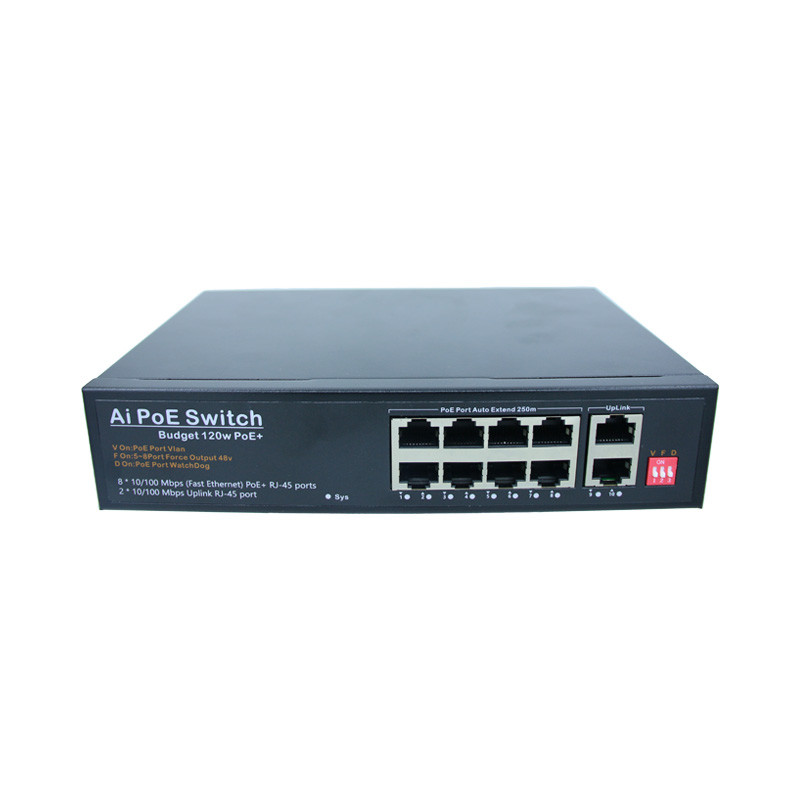

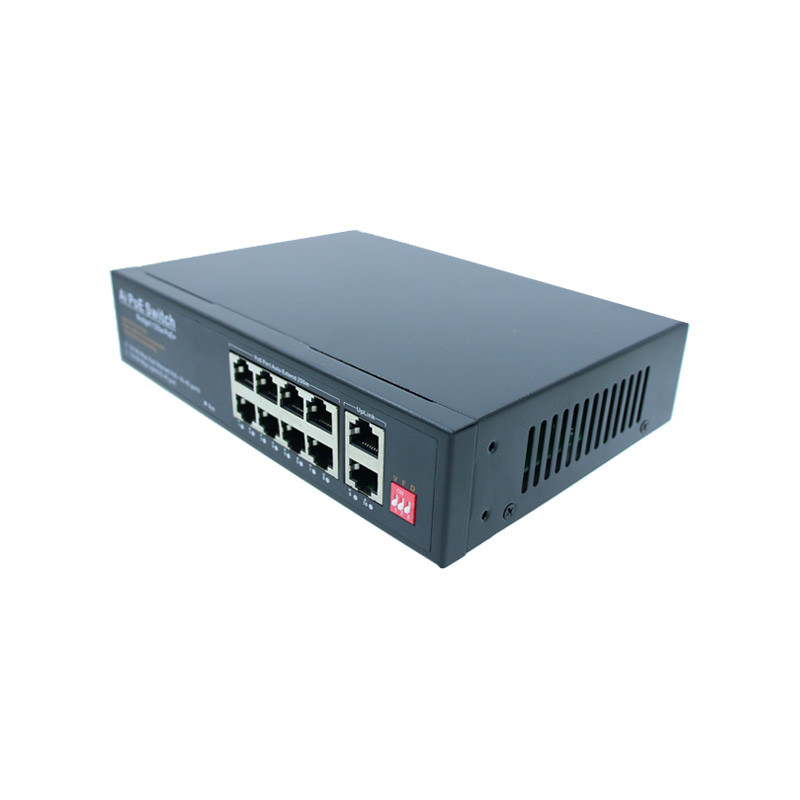

Details Images
