    WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS1208
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot

    4G 5G Dual Band Gigabit WS1208 Router 1200Mbps 4g Wifi Router With Sim Card Slot


    Product Description

    WS1208 is a 5G router dual-core CPU MT7621A frequency can reach 880MHz, plus 5G WiFi chip MT7612E and 2.4G wiFi chip MT7603E, full Gigabit network port, wireless rate can reach 5G 867Mbps/2.4G 300Mbps, internal a MINI PCIE interface, you can Add a 4G or 5G module to use with a SIM card and a usb3.0 interface, which is very powerful and can provide stable network to multiple users at the same time.


    Hardware:

    • Latest Dual core network chipset MT7621A,Clock Frequency get 880Mhz
    • RAM:DDR3 RAM 256MB (MAX512MB)/DDR2 RAM 128MB(MAX 256MB)
    • FLASH:SPI FLASH 16MB (MAX32MB) Higher Flash, need to redraw the PCBA
    • Provide 5 gigabit Auto MDI/MDIX Ethernet port
    • 1 USB3.0 port and 1 PCI-E

    Wireless:
    Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps , 4×5Dbi high gain antennas , perform better and cover larger.

    Software:
    Preload the OpenWRT.


    Specification


    Technical Specification
    SOCMT7621A+MT7612E+MT7603E
    880MHz dual-core MIPS1004Kc CPU
    RAM128Mx16bit DDRIII SDRAM,16MB SPI Flash
    Supports up to 256Mx16bit DDRIII, 32MB SPI Flash
    Wireless Frequency BandWi-Fi 1: 11b/g/n : 2.412~2.484 GHz
    Wi-Fi 2: 11a/n/ac : 5.180
    ~5.825 GHz
    GPS:1565.42~1585.42 MHz
    Wireless SpecificationMaximum access rate of 1167Mbps (2.4G 300Mbps + 5G 867Mbps)
    PCBA sizeL200mm x W175mm x H17mm
    Maximum Power ConsumptionMax. power consumption 24W
    Physical InterfaceWAN x 1+LAN x 4 : RJ45 interface ,10/100/1000 Fast Ethernet
    Power connector: 5.5mm DC socket, DC12V2A power input
    USB interface: 1 USB3.0 female socket
    LTE interface: 1 MiNi PCI-E female connector, connects to USB2.0 interface LTE module, 1 drawer SIM card holder
    Buttons: 1 button to return to factory settings
    Power RequirementsDC12V2A
    Wireless SettingsWorking Mode AP/WDS/Repeater
    Wireless mode 11b/ 11g /11n /11a /11ac
    Channel selection (Display the number of channels in different areas by country setting)
    Channel bandwidth (Auto, 20Mhz, 40Mhz, 80Mhz,)
    Receiving Sensitivity802.11b
    -92dBm @ 1Mbps
    -83dBm @ 11Mbps

    802.11ag
    -91dBm @ 6Mbps
    -76dBm @ 54Mbps

    802.11n HT20
    -91dBm @ MCS0
    -70dBm @ MCS7

    802.11n HT40
    -88dBm @ MCS0
    -67dBm @ MCS7

    802.11ac HT80
    -85dBm @ MCS0
    -58dBm @ MCS9
    AntennaExternal detachable 5DBi high gain omni-directional antenna
    Environmental and Physical Parameters
    Operating Temperature-20°C ~ 55°C
    Storage temperature-40°C ~ 70°C
    Humidity0%~90% Typical, non-condensing

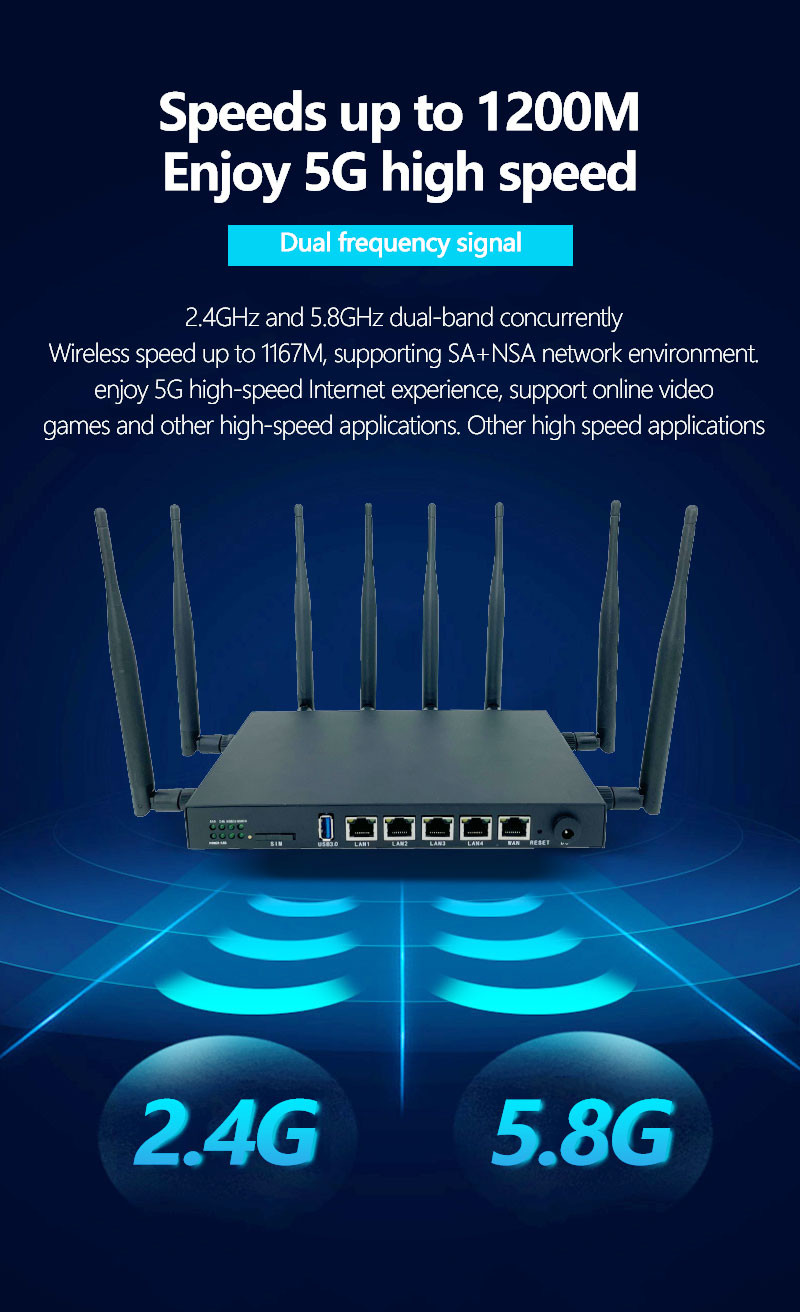

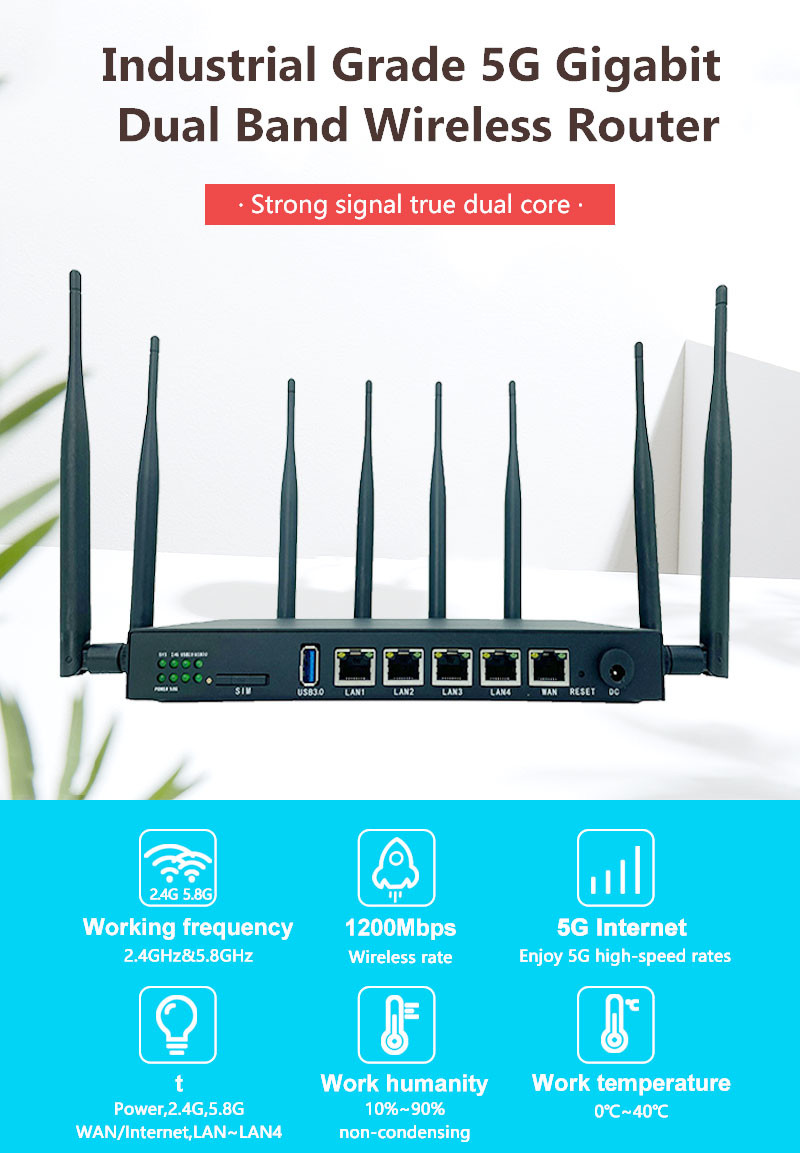

    Products Pictures

    WS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card SlotWS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card SlotWS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card SlotWS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card SlotWS1208 4G 5G Dual Band Wifi Router 1200Mbps With Sim Card Slot
