    12V DC Power 5G Outdoor Router 5g Sim Card Router For Ceiling / Wall

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : M12
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    12V DC Power 5G Outdoor Router 5g Sim Card Router For Ceiling / Wall

    Dual Band 5g Sim Card Router 12V DC Power Outdoor 5g Wifi Router For Ceiling/Wall

    Product Description

    The M12 outdoor 5G gateway base station is based on our independent technology research and development. It belongs to the hardware product category of distributed self-organizing network system solutions. It has a 5G industrial host with high speed, large connection, wide coverage, low latency, and high reliability. This product supports 5G, Ethernet, WiFi, wireless spread spectrum communication and other network access; at the same time, it has strong real-time data edge computing capabilities, open system design, and supports secondary development; it adopts chips, devices, housing design, etc. Full industrial-grade housing waterproof design, with waterproof casing protection grade up to IP66, supports ceiling, wall, pole-mounted installation, can be adapted to a variety of industrial sites such as indoor and outdoor, widely used in smart factories, smart medical, unmanned vehicles, Smart cities and other fields.

    Shell characteristics:

    • All-metal aluminum alloy is integrally formed, explosion-proof, waterproof, and corrosion-proof. The waterproof level supports IP66 waterproof level
    • 6 external N-type industrial-grade WiFi antenna interfaces, adapt to different antenna types according to the needs of the scene(5.8G, 2.4G standard configuration 7DBI omnidirectional gain antenna,Optional 14DBI directional antenna)
    • 4 external SMA industrial grade 5G antenna ports, adapt to different antenna types according to the needs of the scene(5G/4G standard configuration 5DBI omnidirectional gain antenna)
    • The power, internet, 4G/5G instructions are clear at a glance.
    • External waterproof grade Gigabit Ethernet LAN port.

    WiFi6 Datasheet

    WiFi 6(802.11ax)

    • Working Radio: #1: 600Mbps @ 2.4GHz; #2: 2475Mbps @ 5.1-5.8GHz
    • Coding Technology:1024-QAM / OFDMA
    • Peak Connections:>500+ Clients
    • Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward

    Data Switching

    • Mobile 4G/5G Connection (Support APN)
    • Giga Ethernet Connection
    • MESH:MESH+ hybird
    • 2.4G/5Ghz WiFi
    • Advanced Firewall
    • MAC Filter
    • WiFi Sercurity
    • VPN Passthrough and VPN Client (L2TP PPTP)
    • IPV4/IPV6
    • WEB / APP Mangement
    • Firmware upgrade

    Hardware Specification

    • CPU: IPQ8071A Quad-core CPU @ 1.0 GHz
    • Memory:16MB + 256MB Flash + 2* 256MB DDR3
    • Ethernet:1*2.5Gbps WAN,2*LAN 1Gbps
    • 1* SIM Slot(Nano-SIM)
    • Reset button
    • LED Indicator : Internet, 4G Status, 5G Status, Power Status
    • Power Consumption:<24W
    • DC Power Supply: 12V/3A
    • Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
    • Humidity:5%~95%
    • Dimensions:217X217X70MM

    Specification

    Model M12
    CPU 8071+SDX55
    Flash 16MB + 256MB Flash
    ROM 4Gb
    WiFi Frequency band 2.4G&5G
    WiFi 2.4G:802.11b/g/n /ax, 5.8GHz:802.11a/n/ac/ax MIMO
    WiFi rate 2.4GHz :600Mbps ,5GHz :2475Mbps
    5G Standard 3GPP Release 15 NSA/SA operation, Sub-6 GHz
    5G Networking method NSA/SA
    5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
    5G/4G rate 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
    LTE : Down 1.0 Gbps;UP 200 Mbps
    5G NR NSA
    n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
    5G NR SA
    5GFrequency band n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
    MIMO
    Down:4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79
    UP:2 × 2 MIMO on n41
    LTE Category
    Down Cat 16/ UP Cat 18
    LTE-FDD
    B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
    LTE-TDD
    B34/B38/B39/B40/B41/B42/B43/B48
    4GFrequency band LAA
    B46(Only supports 2 × 2 MIMO)
    Down 4 × 4 MIMO
    B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
    WCDMA
    B1/B2/B3/B4/B5/B6/B8/B19
    5G:
    Modulation mode GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM

    WIFI:

    1024-QAM / OFDMA

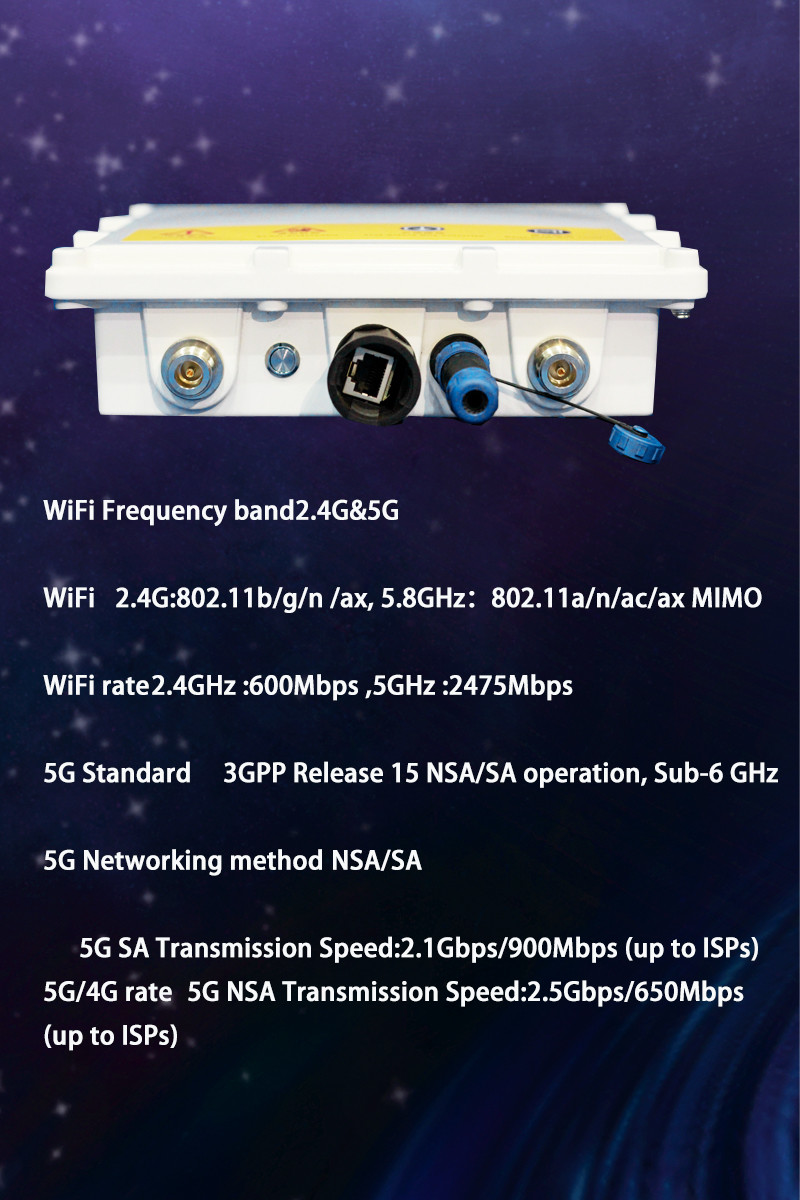

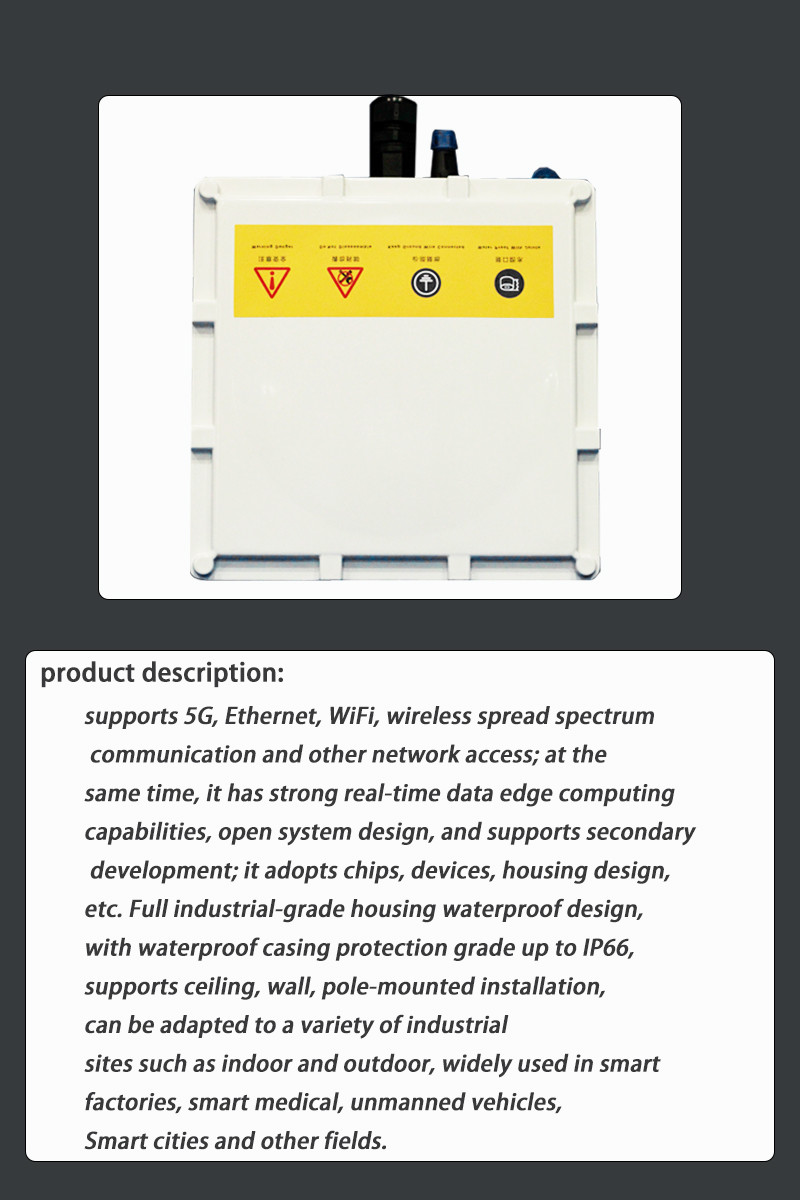

    Details Images

    12V DC Power 5G Outdoor Router 5g Sim Card Router For Ceiling / Wall12V DC Power 5G Outdoor Router 5g Sim Card Router For Ceiling / Wall12V DC Power 5G Outdoor Router 5g Sim Card Router For Ceiling / Wall12V DC Power 5G Outdoor Router 5g Sim Card Router For Ceiling / Wall12V DC Power 5G Outdoor Router 5g Sim Card Router For Ceiling / Wall

    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
