1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3

    Buy cheap 1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 from wholesalers

    Buy cheap 1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 from wholesalers
    • Buy cheap 1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 from wholesalers
    • Buy cheap 1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3 from wholesalers

    1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS1209-H
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3

    1200Mbps Dual Band Unlock 5g Router POE Power Waterproof Outdoor 5g Router


    Product Description

    The WS1209-H outdoor 5G gateway base station is based on our independent technology research and development. It belongs to the hardware product category of distributed self-organizing network system solutions. It has a 5G industrial host with high speed, large connection, wide coverage, low latency, and high reliability. This product supports 5G, Ethernet, WiFi, wireless spread spectrum communication and other network access; at the same time, it has strong real-time data edge computing capabilities, open system design, and supports secondary development; it adopts chips, devices, housing design, etc. Full industrial-grade housing waterproof design, with waterproof casing protection grade up to IP66, supports ceiling, wall, pole-mounted installation, can be adapted to a variety of industrial sites such as indoor and outdoor, widely used in smart factories, smart medical, unmanned vehicles, Smart cities and other fields.


    Shell characteristics

    • All-metal aluminum alloy is integrally formed, explosion-proof, waterproof, and corrosion-proof. The waterproof level supports IP66 waterproof level

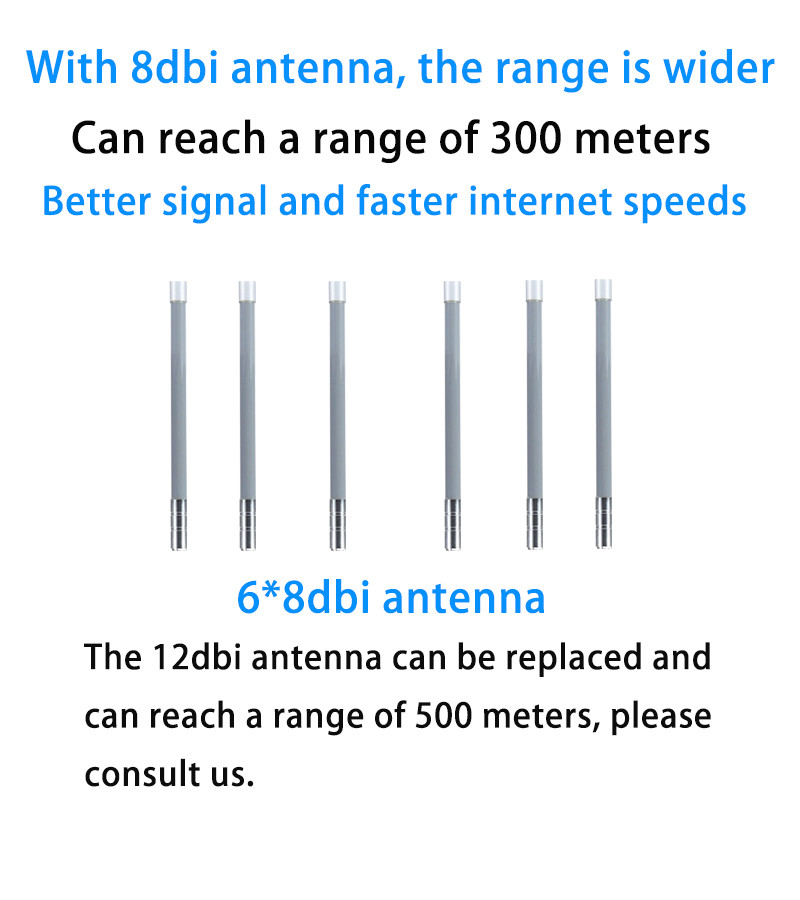

    • 5 external N-type industrial-grade WiFi antenna interfaces, adapt to different antenna types according to the needs of the scene,8DBi high gain fiberglass antenna
    • The power, internet, 4G/5G instructions are clear at a glance.
    • External waterproof grade Gigabit Ethernet LAN port.

    WiFi Datasheet

    WiFi 1200Mbps(802.11AC)

    • Working Radio: #1: 300Mbps @ 2.4GHz; #2: 900Mbps @ 5.1-5.8GHz
    • Coding Technology:1024-QAM / OFDMA
    • Peak Connections:>500+ Clients
    • Wi-Fi Standard Conformance:WiFi 802.11ac / 802.11n backward

    Data Switching

    • Mobile 4G/5G Connection (Support APN)
    • Giga Ethernet Connection
    • 2.4G/5Ghz WiFi
    • Advanced Firewall
    • MAC Filter
    • WiFi Sercurity
    • VPN Passthrough and VPN Client (L2TP PPTP)
    • IPV4/IPV6
    • WEB / APP Mangement
    • Firmware upgrade

    Hardware Specification

    • CPU:MT7621
    • Memory:16MB + 256MB DDR3
    • Ethernet:1*1Gbps WAN,2*LAN 1Gbps
    • 1* SIM Slot
    • Reset button
    • LED Indicator : 4G5G Status, Power Status, 2.4G LED, 5.8G LED
    • Power Consumption:<24W
    • DC Power Supply: 15V POE or 48V POE
    • Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
    • Humidity:5%~95%

    Specification


    ModelWS1209-H
    CPUMT7621
    Flash16MB + 256MB Fl
    WiFi Frequency band2.4G&5G
    WiFi2.4G:802.11b/g/n 5.8GHz:802.11a/n/ac MIMO
    WiFi rate2.4GHz :300Mbps ,5GHz :900Mbps
    5G Standard3GPP Release 15 NSA/SA operation, Sub-6 GHz
    5G Networking methodNSA/SA
    5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
    5G/4G rate5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
    LTE : Down 1.0 Gbps;UP 200 Mbps
    5G NR NSA
    n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
    5G NR SA
    5GFrequency bandn1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
    MIMO
    Down:4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79
    UP:2 × 2 MIMO on n41
    LTE Category
    Down Cat 16/ UP Cat 18
    LTE-FDD
    B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
    LTE-TDD
    B34/B38/B39/B40/B41/B42/B43/B48
    4GFrequency bandLAA
    B46(Only supports 2 × 2 MIMO)
    Down 4 × 4 MIMO
    B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
    WCDMA
    B1/B2/B3/B4/B5/B6/B8/B19
    5G:
    Modulation modeGMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM
    WIFI:
    1024-QAM/OFDMA

    Details Images

    1200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR31200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR31200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR31200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR31200Mbps Dual Band Outdoor 5g Router IP66 Waterproof 256MB DDR3


    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
