2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge

Shenzhen Huasifei Technology Co., Ltd.
Contact Now
    Buy cheap 2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge from wholesalers

    Buy cheap 2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge from wholesalers
    • Buy cheap 2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge from wholesalers
    • Buy cheap 2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge from wholesalers

    2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : CPE46B
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge

    2.4Ghz 300Mbps Point To Point 24V POE 1KM Wireless Outdoor Wifi Network Bridge

    Product Description

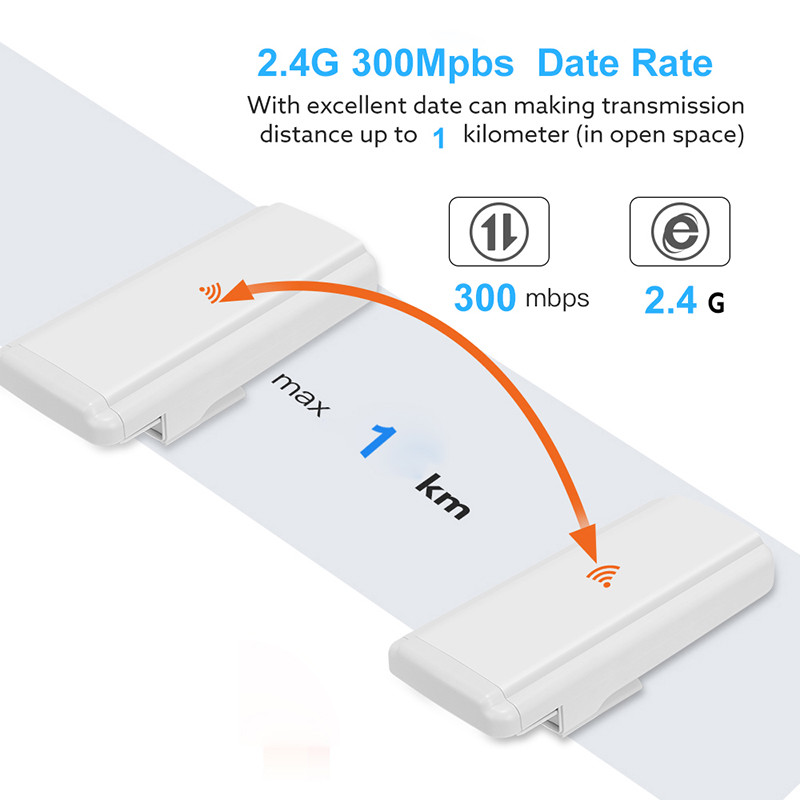

    CPE46B-2.4G is a 300Mbps PoE output outdoor wireless WiFi bridge support 1KM 2.4GHz long-range WiFi extender with LED indicator meet with multiple wireless transmission scheme demands. Outdoor wireless CPE bridge waterproof, dustproof, lighting protection. Operating temperature: -20~+55°C/storage temp: -40℃-85℃ Multi-Mode wireless wifi bridge with an ethernet port and LED indicator. Support wireless AP, Point to Point Connection s with 1-2KM distance
    Wireless bridge LED indicator can show signal strength, easy to set via computer. Setting CPE master mode as AP mode, slave mode as Client mode. Click " Scan" in the settings of the slave mode, scan to the CPE SSID of the master mode to be connected, and then make the connection settings. It transmits via wireless signal, reducing the trouble of wiring cable.
    Widely Applications,Any place required security monitoring by cameras Point to Point/Multi-Point connection Client Bridge for Elevator Monitor, surveillance networks. Outdoor CPE Connect an IP Surveillance Camera to a secondary port and utilize its long-range connectivity to send surveillance video back through the wireless network for extended surveillance coverage.

    Specification

    Main Chipset CPU:AR9331 RF:AR9331
    Standards Comply

    IEEE802.3u MDI/MDIX

    IEEE802.11b/g/n

    DDR2 32MB(64MB optional)
    FLASH 8MB (16MB optional)
    Power Supply 24V passive POE support on 2 LAN ports
    CPU Frequency 400MHz
    Antenna 12dBi directional
    Ethernet Ports 2 10/100Mbps Ports ( with Auto MDI / MDIX)
    Reset Button Restore to factory default
    LED Power, WAN,LAN, WLAN,RSSI1,RSSI2
    Data Transfer Rate

    11b: 11M, 5.5M, 2M, 1Mbps

    11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps

    11N:6.5M, 13M, 13.5M,19.5M, 26M,27M, 39M, 40.5M,52M, 54M,58.5M, 65M,81M,108M,121.5M,135M,150Mbps

    Transmission Type DSSS
    Modulation Type OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
    RF Frequency range 2412 GHz ~ 2484 GHz (Channel1 ~13)
    Power consumption <5W
    RF Power 100mW
    Sensitivity

    IEEE 802.11b

    1Mbps=-95dBm

    11Mbps=-89dBm

    IEEE 802.11g

    6Mbps=-92dBm

    54Mbps=-73dBm

    IEEE 802.11n

    HT 20

    MCS 0=-86dBm

    MCS 7=-68dBm

    HT 40

    MCS 0=-83dBm

    MCS 7=-65dBm

    Dimensions 110mmx69mm
    Weight =300g
    Environmental Requirement
    Operation Temperature -20~+55°C

    Operation Humidity

    (non-condensation)

    10%~90% RH
    Storage Temperature -40~+85°C

    Storage Humidity

    (non-condensation)

    10%~90% RH
    Environmental Standard RoHS Compliance

    Detailed image

    2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge2.4Ghz Wireless Network Bridge 300Mbps Wifi Point To Point Bridge

    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
