Waterproof Outdoor 4g Router 300Mbps LAN Port 4G LTE FDD WIFI Wireless Router
Product Description
A companion wireless communication product, which is transformed into the demand of security industry, has a wireless speed of up to 300mbps, which brings great convenience to the construction of security user engineering, and provides safe data network, collection and transmission function for monitoring. The whole network is connected to 4G network, and the whole line is compatible with 4g/3g/2g network, and equipped with 2 10/100m Ethernet LAN interfaces, which are connected with ICP; 1 DC 12V reverse power supply port, which can directly supply IPC.
Product features

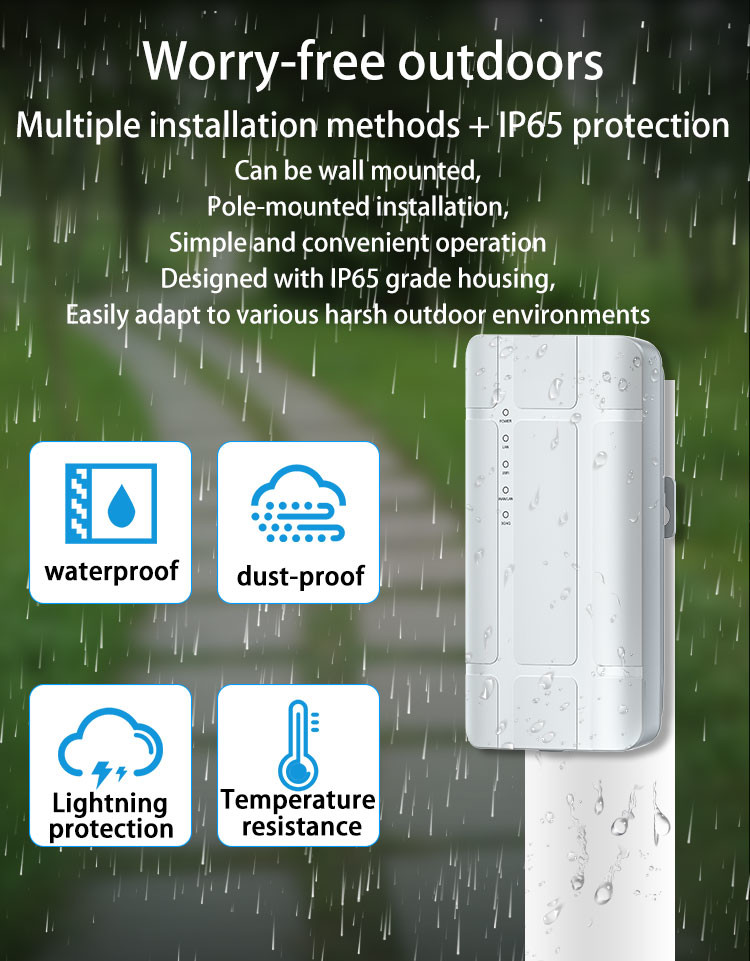

Industrial waterproof design, reverse power supply, 300m wireless speed
It adopts professional wireless processor and integrated shell, which can effectively prevent water and dust. It has built-in 5dBi 4G professional antenna and wifi antenna. The device is equipped with connecting line, and two 100m cable ports are provided to connect with IPC, which makes the network transmission more stable. In addition, it is equipped with 12V DC output port, which can directly supply power to IPC.
Easy to set up and plug in
Built in quick setup wizard to guide customers to complete configuration easily; Default 4G access mode, plug in and play; Support 4G to cable, support mobile Unicom Telecom 4G / 3G / 2G network card, in the cable bandwidth can not reach the place more 4G Internet advantage, 4G and cable automatic switch, never break the line.
A variety of security strategies to ensure network data security at all times
Support WPS, WPA, WPA2 wireless security access, support SSID concealment, visitor network, black and white list, LAN port isolation, alg, MAC filtering, IP filtering, NAT setting, DDoS, effectively protect network security, and ensure user network data security at all times.
Various status statistics, always know the working status of the equipment
Built in traffic statistics, support traffic package settings, easy to understand the monthly traffic usage; Multi state work indicator, real-time work log view, always understand the working status of the equipment.
Specification
| Hardware Specifications |
| Main chip | MT7628N 300M High performance enterprise chip |
| Main frequency | 580MHz |
| Wireless technology | 802.11b/g/n 300M MIMO technology |
| Flash memory | SPI 128MB |
| Memory | DDR2 1GB |
| Device interface | LAN 10/100Mbps Adaptive network interface * 1 DC reverse power supply port * 1 Power receiving interface *1 Nano SIM Card, small card |
| Antenna | Built in 5dBi 4G antenna, built-in onboard wifi antenna |
| power waste | <7W |
| Key | One reset button, long press for 3 seconds to restore factory settings |
| Product size | 172mm*90mm*43mm |
| RF parameters | 802.11b/g/n:2.4~2.4835GHz |
| Modulation mode | 11b:DSS:CCK 5.5/11Mbps,DQPSK 2Mbps,DBPSK 1Mbps 11g:OFDM:64QAM 48/54Mbps,16QAM 24Mbps,QPSK 12/18Mbps,BPSK 6/9Mbps 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM |
| transmission speed | 11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: Up to 300Mb |
| Receiving sensitivity | 11b: <-84dbm 11Mbps; 11g: <-69dbm 54Mbps; 11n: HT20<-67dbm HT40: <-64dbm |
| Transmitting power | 11b: 18dBm@ 1~11Mbps 11g: 16dBm @ 6~54Mbps 11n: 15dBm@ MCS0~7 |
| Communication Standards | IEEE 802.3(Ethernet) IEEE 802.3u(Fast Ethernet) IEEE 802.11b/g/n(2.4G WLAN) |
| Wireless Security | WPA/WPA2 Security mechanism (wpa-psk uses TKIP or AES) |
| Network standard / GNSS | |
| LTE-FDD (support hierarchical reception) | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8(Customizable) |
| GNSS function | GPS,GLONASS,BeiDou/Compass,Galileo,QZSS |
| Transmitting power | Class 4 (33dBm±2dB) for GSM900 Class 1 (30dBm±2dB) for DCS1800 Class E2 (27dBm±3dB) for GSM900 8-PSK Class E2 (26dBm±3dB) for DCS1800 8-PSK Class 3 (24dBm+2/-1dB) for CDMA BC0 Class 3 (24dBm+1/-3dB) for WCDMA bands Class 2 (24dBm+1/-3dB) for TD-SCDMA bands Class 3 (23dBm±2dB) for LTE-FDD bands Class 3 (23dBm±2dB) for LTE-TDD bands |
| LTE Features | Maximum support 3GPP R8 non-CA Cat 4 FDD and TDD support 1.4MHz~20MHz RF bandwidth Downlink support MIMO LTE-FDD:Maximum downlink rate 150Mbps,Maximum uplink rate 50Mbps LTE-TDD:Maximum downlink rate 130Mbps,Maximum uplink rate 35Mbps |
| UMTS Features | support 3GPP R8 DC-HSDPA,HSPA+,HSDPA,HSUPA and WCDMA support QPSK,16-QAM and 64-QAM modulation DC-HSDPA:Maximum downlink rate 42Mbps HSUPA:Maximum uplink rate 5.76Mbps WCDMA:Maximum downlink rate 384Kbps,Maximum uplink rate 384Kbps |
| TD-SCDMA Features | support CCSA Release 3 TD-SCDMA Maximum downlink rate 4.2Mbps,Maximum uplink rate 2.2Mbps |
| CDMA Features | support 3GPP2 CDMA2000 1X Advanced and 1xEV-DO Rev.A EVDO:Maximum downlink rate 3.1Mbps,Maximum uplink rate 1.8Mbps 1 X A d va n c e d:Maximum downlink rate 3 0 7 . 2 K b p s,Maximum uplink rate307.2Kbps |
| Operating/Storage Temperature | -10℃~50℃/-40℃~70℃ |
| Operating/Storage Humidity | 5%~95%(non condensing) |
| Working mode | 4G Access, routing mode, AP mode |
| Capacity | 30 people |
| Management style | Chinese web remote management |
| Status | System status, interface status, routing table |
| Wireless Configuration | WiFi basic parameters configuration / blacklist |
| Network Settings | Working mode LAN/WAN Address setting |
| Traffic Assistant | Traffic statistics / package settings / traffic control |
| System | System properties / password modification / backup upgrade / system log / restart |
