1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A

    Buy cheap 1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A from wholesalers

    Buy cheap 1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A from wholesalers
    • Buy cheap 1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A from wholesalers
    • Buy cheap 1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A from wholesalers

    1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS1209
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A

    Dual Band 5g Vehicle Router Chipset MT7621A 1200Mbps Industrial Mobile Router 5g


    Product Description

    WS1209-5G is a 5G/4G+WiFi dual band 1200M industrial grade vehicle router, which supports three gigabit Ethernet communications, WIFI LAN (802.11 b/g/n/a/ac) communications and WAN 4G/5G wireless communication functions. The device is loaded with WAN communications, WIFI LAN transmission security certification, 5G/4G/3G system watchdog and other functions, realizing seamless connection between WLAN and wireless WAN, automatic redial when disconnected, and providing users with high-speed Safe and reliable mobile broadband service;
    The equipment adopts metal shell, special vehicle anti-interference design, good anti-interference performance, and safe anti-theft frame. The on-board special power supply design is adopted to support the on-board 12V and 36V power supply systems, which can effectively prevent the damage of the on-board power supply fluctuation to the equipment. It is applied to the WIFI wireless Internet access of various mobile vehicles, such as bus WIFI, long-distance bus WIFI, bullet train WIFI and taxi WIFI. At the same time, the equipment is also widely used in the WIFI coverage of scenic spots and other public places.


    Specification


    WS1209-5G Hardware Specifications
    Hardware Specifications

    MT7621A Dual Core 880MHZ

    DDR3 memory 256MB

    SPI FLASH 16MB

    4G 5G Modem4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20
    Antenna4 x 5dbi high gain omni-directional 4G5G antennas
    Interface

    1*10/100M/1000M WAN port with automatic MDI/MDIX

    2*10/100M/1000M LAN ports, auto MDI/MDIX or 2PCS LAN can be selected.

    1*USB 2.0 port

    1*PCI-E

    1*M.2

    1*SIM card

    1*SD card

    1*4PIN Power interface

    LEDPower/SYS/USB/2.4G/5.8G/4G5G/USB
    Button1 Reset button
    Power adapter9V-36V Vehicle wide voltage
    Maximum power consumption< 24W
    Accessories and Packaging

    Power cord

    Super Category 5 network cable *1PCS

    Antenna*6PCS

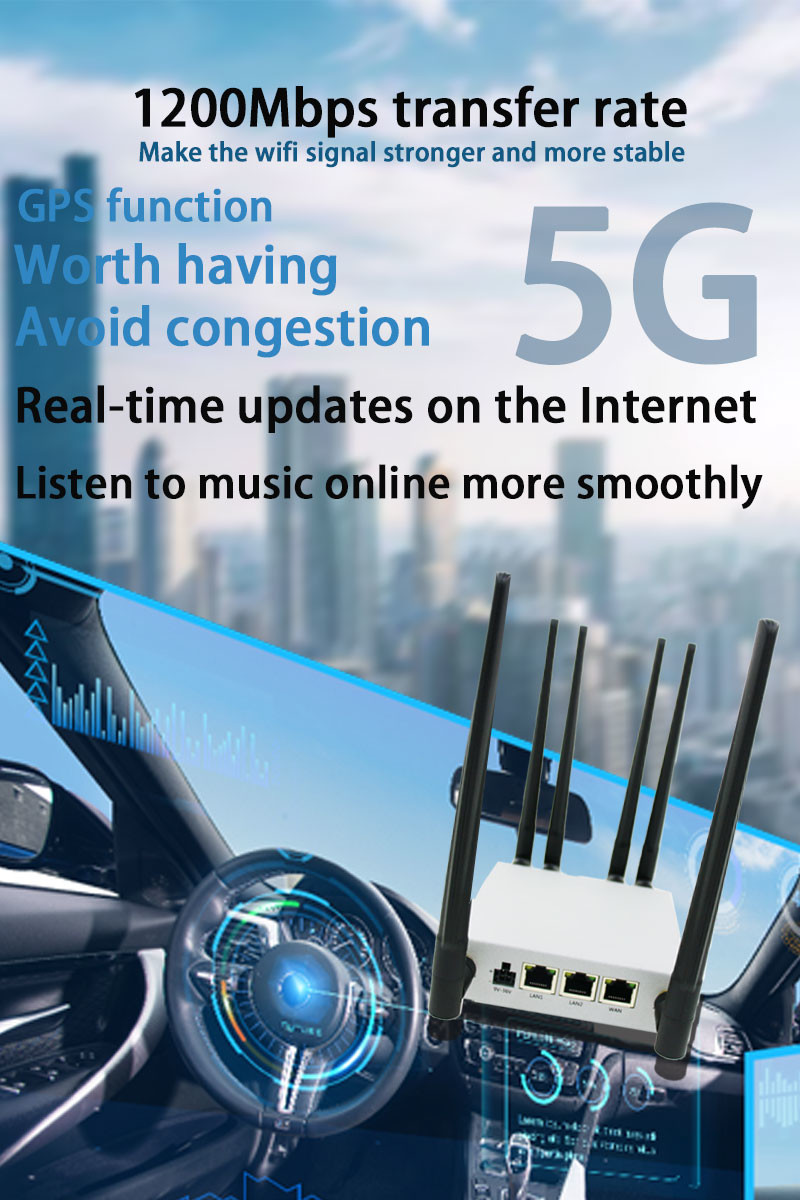

    Details Images

    1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A1200Mbps 5G Industrial Router 5g Vehicle Router Chipset MT7621A


    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
