    1800Mbps 5G Industrial Router Gigabit RJ45 Port 12V DC Power 5g Router

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS6001
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    1800Mbps 5G Industrial Router Gigabit RJ45 Port 12V DC Power 5g Router

    1800Mbps 5G Industrial Router Gigabit RJ45 Port 12V DC Power 5g Router


    Product Description

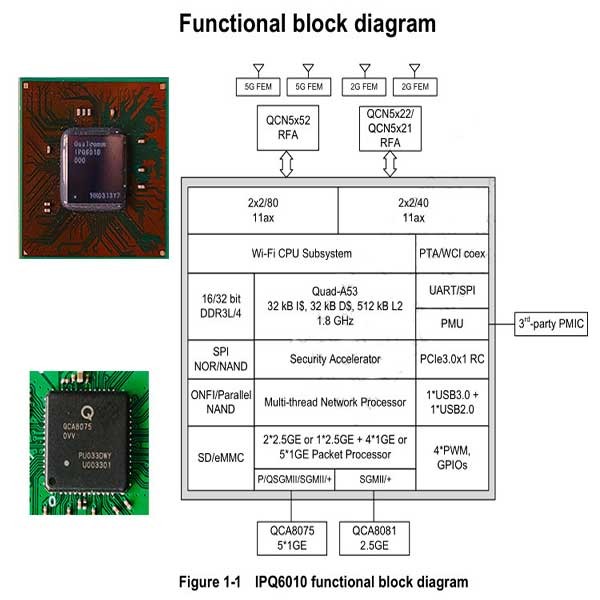

    Adopt Qualcomm IPQ6010 chip, the chip uses 4-core ARM Cortex A53 at 1.8 GHz, 2.4G adopts 2-way MU-MIMO OFDMA modulation technology, up to 573Mbps, 5.8G uses 2-way MU-MIMO OFDMA modulation technology, up to 1201Mbps, 802.11 The ac unique modulation method can support more load terminals, and can mount 512 terminals at the same time.


    WS6001 has rich interfaces and supports multiple interface reservations to meet the needs of various application scenarios

    • 2-way USB3.0 M.2 interface, can be connected to M.2 5G module (factory default)
    • 2-way USB2.0 MINI PCI-E interface, can be connected to 4G module (factory requirements)
    • 1 way MINI PCIE and 4G shared socket
    • 1 USB 3.0 interface
    • 1 SATA interface, you can directly mount the hard disk
    • 1 SPI interface, 2.54mm header
    • 1 I2C interface, 2.54 double row pin
    • 10 LED indicators, 2.54 pin headers, 9 GPIO
    • Support 12VDC power supply and 802.11at POE module power supply
    • Support 1 Gigabit WAN 4 Gigabit LAN, or 1 2.5G WAN 4-way 1000M LAN
    • Support TF card
    • Support 2 serial ports, one debugging serial port and one spare serial port
    • WS6001 software adopts QSDK11 version, default double page, factory software support Default PPPOE dial-up DHCP, static IP
    • Support dual 4G/dual 5G dialing, master/slave priority, 4/5G simultaneous proportional load, 4/5G master/standby switching

    Specification


    ChipsetIPQ6010+QCN5052+QCN5022+QCA8081(QCA8075)
    CPUIPQ6010/601:Quad ARM Cortex A53 at 1.8 GHz, 64-bit ISA v8 instruction set
    RAM1GByte DDR3
    NOR flash32M Byte
    NAND256M Byte
    PCB176*146mm
    radio frequency2.4G(802.11AX)2T2R + 5G(802.11aX) 2T2R
    antenna gain5dBi,external
    rate2.4g 600M+5g 1200M
    port5*10/100/1000Mbps RJ45 Port,or 4 1000M+2.5G WAN
    power supplySupport DC 12V 2A power receiving (12V 3A recommended for dual 5G), 802.11at POE power receiving
    indicator light

    10 green indicators (power, 2.4G, 5.8G, 5 network ports, 2 4/5G),

    External 12PIN pin

    USB3.0 expand


    1*SATA external interface
    1*USB external interface
    1*M.2 Main card slot /4G. Master Card MINI PCI-E
    1*M.2 Secondary card slot
    USB 2.0Secondary card 4G MINI-PCIE
    PCIE/4G Master CardReceive the main card 4G MINI-PCIE
    Module Support List

    Longshang U9300C single and dual cards

    Huawei 5G MH5000 single card

    Quectel 5G RM500 single card

    TF cardSupport, default factory without
    SATASupport 1*SATA, default without,
    External pin interfaceUART0,UART1, I2C,SPI(Refer to the following circuit)
    Working frequency

    802.11ac/n/ac/ax: 5.150GHz-5.850GHz ;

    802.11b/g/n/ax : 2.4GHz-2.483GHz (China)

    RF parameters

    2.4G


    11AX RF Power 19±1.5dbm EVM≤-35dbm
    11AC RF Power 21±1.5dbm EVM≤-31dbm
    11N RF Power 22±1.5dbm EVM≤-28dbm
    11G/B RF Power 23±1.5dbm EVM≤-25dbm

    5.8G


    11AX RF Power 19±1.5dbm EVM≤-35dbm
    11AC RF Power 21±1.5dbm EVM≤-31dbm
    11N RF Power 22±1.5dbm EVM≤-28dbm
    11A RF Power 23±1.5dbm EVM≤-25dbm
    Working/storage temperature-10℃~50℃/-40℃~70℃
    Working/Storage Humidity5%~95%(non-condensing)

    Details Images

    1800Mbps 5G Industrial Router Gigabit RJ45 Port 12V DC Power 5g Router1800Mbps 5G Industrial Router Gigabit RJ45 Port 12V DC Power 5g Router1800Mbps 5G Industrial Router Gigabit RJ45 Port 12V DC Power 5g Router
