Dual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN Port

    Buy cheap Dual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN Port from wholesalers

    Buy cheap Dual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN Port from wholesalers
    • Buy cheap Dual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN Port from wholesalers
    • Buy cheap Dual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN Port from wholesalers

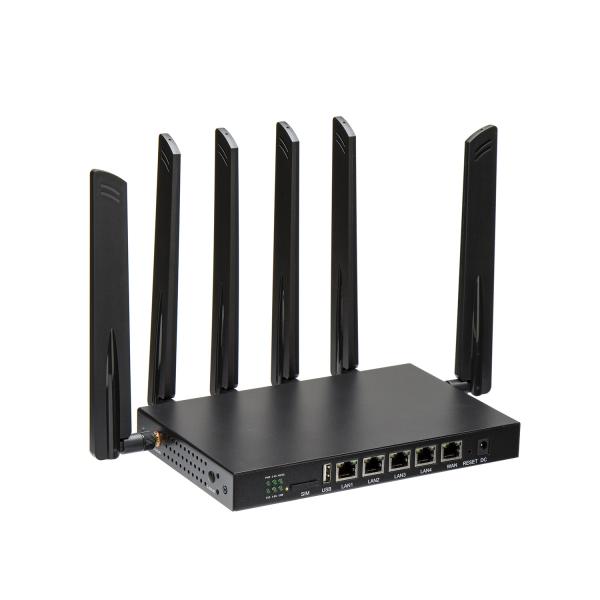

    Dual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN Port

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS1208V2
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Dual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN Port

    1200Mbps Dual Band 4g 5g Wifi Router Gigabit WAN/LAN Port Wifi Router 4g Lte


    Hardware

    WS1208V2 uses the latest MMT7621A wireless solution with clock frequency up to 880MHZ, providing 5 Gigabit auto MDI/MDIX Ethernet ports, 1 x USB 2.0 port, 1 x PCI-E, 1 x M.2, 1 x Micro SD card


    Wireless.
    Support IEEE802.11AC/N/G/B/A wireless protocol, maximum wireless rate up to 1200Mbps, 6×5Dbi high gain antennas for better performance and coverage


    Software

    • OpenWRT pre-installed.
    • Firmware support rooter.
    • Firmware support Quectel EC25 series EM/EP06 BG96 EM12 EM20 EM160 R500Q R502Q
    • Fibocom L850 L860 FM150 module, etc.
    • Modem band lock support

    Specification


    WS1208V2 Hardware Specifications
    Hardware Specifications

    MT7621A Dual Core 880MHZ

    DDR3 memory 256MB

    SPI FLASH 16MB

    Protocol StandardsIEEE802.11n/g/b/a/ac,IEEE802.3/802.3u
    Wireless RateDual-band concurrent up to 1200Mbps
    Operating band2.4GHz 5.8GHz
    4G 5G Modem
    Output Power

    11n:17dBm±1dBm

    11g: 17dBm±1dBm

    11b: 19dBm±1dBm

    11a: 19dBm±1dBm

    11ac: 18dBm±1dBm

    Receiving sensitivity

    11N HT20 MCS7: -72dBm

    11N HT40 MCS7: -69dBm

    11G 54Mbps: -74dBm

    11B 11Mbps: -86dBm

    11A 54Mbps: -73dBm

    11AC VHT20 MCS8: -66dBm

    Antenna

    2 x 5dbi high gain omni-directional wifi antennas,

    4 x 5dbi high gain omni-directional 4G5G antennas

    Interface

    1*10/100M/1000M WAN port with automatic MDI/MDIX

    4*10/100M/1000M LAN ports, auto MDI/MDIX

    1*USB 2.0 port

    1*PCI-E

    1*M.2

    1*SIM card

    1*SD card

    LEDpower/2.4G/5.8G/WAN/LAN1/LNA2/LNA3/LNA4
    Button1 Reset button
    Power adapterDC 12/1000mA
    Maximum power consumption< 24W
    Color schemeBlack
    Accessories and Packaging

    Egg separator paper tray 32*21*6cm *1PCS

    Whole box: 43.1*28.5*34.8 10PCS

    Power adapter 12V/3A *1PCS

    Super Category 5 network cable *1PCS


    Details Images

    Dual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN PortDual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN PortDual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN PortDual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN PortDual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN PortDual Band 4g Lte 5ghz Wifi Router 1200Mbps Gigabit WAN/LAN Port

    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
