X21 5g Cpe lte router gigabit LAN port 12V DC power supply 5g
wireless router
Product Description
X21 is a high-performance 5G indoor data terminal that supports NR
(SA&NSA), LTE, converts cellular network data into WIFI and
wired network port data, supports 4 Gigabit LAN ports, 2.4G+5G
dual-band WIFI hotspot ( AP). Suitable for home or commercial
scenarios that require rapid deployment of communication networks
and WIFI hotspots
Features
Antenna: 6 built-in cellular antennas + 2 WIFI dual-band antennas
Dimensions length, width and height: 117*117*180mm
Power: Consumption< 24W
Power adapter: DC 12V/2A
Support frequency band: N1N8N28N787941
MIMON: SA:1T4R; SA:2T4R
Support bandwidth: 5M, 10M, 15M, 20M, 25M, 30M, 40M, 50M, 60M,80M,
90M, 100M
SCS: 30khz, 15khz
IPv4&IPv6 support: IPv4, IPv6, IPv4&IPv6 dual stack
Downlink peak rate: 2Gbps
Uplink peak rate:1Gbps Output power: 23±2dBm, support high power
mode
Built-in antenna: 6 antennas
Antenna gain: 3-5dBi
Support frequency band: B12357820283438394041
MIMO: 2*MIMO
Output power: 23±2 dBm
LTE Antenna Gain: 3-5 dBi
Wi-Fi frequency band: 2.4GHz +5GHzW
IFI mode: 802.11b/g/a/n/ac
Built-in Wi-Fi antenna: 2.4+5G dual-band antenna
Wi-Fi output power: 16dBm/2.4G; 18dBm/5G;
Wi-Fi support bandwidth: 20MHz, 40MHz, 80MHz(ac)
Wi-Fi antenna gain: 3-5dBi/2.4G; 3-5dBi/5G5
Language: English, other languages can be customized
Specification
| Chipset | UNISOC IVY510/ Qualcomm X55 |
| Dimension | 117mm*117mm*180mm |
| Bands | NR:1/3/8/28/41/77/78/79 LTE:1/2/3/5/7/8/20/28/34/38/39/40/41 |
| Data Rates | 5G NR:2Gbps(DL)/1Gbps(UL) LTE:600Mbps(DL)/150Mbps(UL) |
| Software | Voice | VONR/VOLTE/VOIP |
| Other protocol | TR069,IPV4/IPV6,VPN(PPTP/L2TP/SSL /VPN/GRE/IP SEC) |
| Hardware | Power interface | DC 12V/2A |
| Wifi | 2.4G/5.8G, 802.11 b/g/n/ac/a |
| Antenna | Internal antenna |

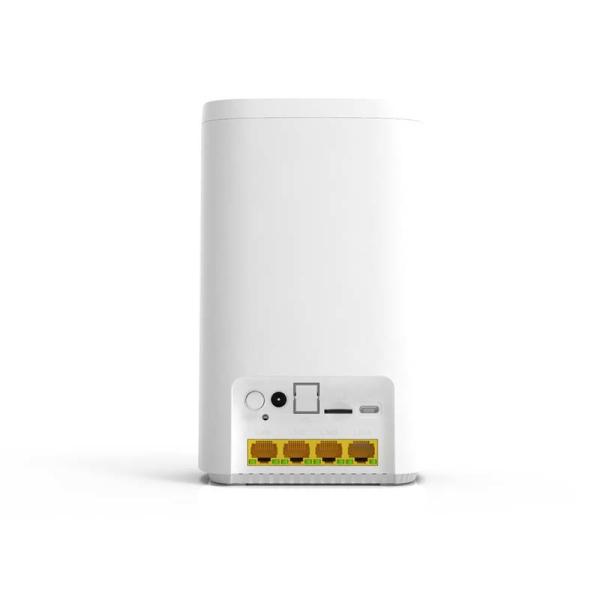

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5
weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal order.
Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF
Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also
optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which
is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you
design as your requirement.
