    12V DC Power 4G Industrial Router 4g Lte Router Chip QCA9531

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS1315
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    12V DC Power 4G Industrial Router 4g Lte Router Chip QCA9531

    300Mbps 4g Wireless Industrial Router Chip QCA9531 12V DC Power 4g Lte Router


    Product Description

    The uses the latest wireless solution, performance is better and more functions. Stable wireless signal, stronger scalability, 2.4GHz up to 300Mbps. Also support 3G,4G also support watchdog feature. 1 Micro SD slot .


    Feature
    • Support 802.3/802.11u protocol,
    • 5* 10/100Mbps Auto MDI/MDIX
    • 1 Micro SD Card Slot
    • Support 3G/4G
    • Support watchdog feature
    • Many kinds of way to protect your data transmission;

    Specification


    Hardware
    Main ChipsetQCA 9531 chipset
    RAMDDR2 128MB
    SPI FLASH16MB
    ProtocolIEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a
    IEEE 802.3, IEEE 802.3u
    RT Power

    802.11b 18dBm±2dBm;

    802.11g 15dBm±2dBm;

    802.11n 15dBm±2dBm;

    802.11ac depends on the 11ac module;

    Reception Sensitivity

    802.11b: -83dBm@10% PER

    802.11g: -74dBm@10% PER

    802.11n: -68dBm@10% PER

    802.11ac: depends on the 11ac module;

    Work Channel2.4GHz choose :1-13
    Work Frequency2.4GHz,
    4G Bands

    LTE FDD:B1/B3/B8/B18/B19/B26

    LTE TDD:B41

    WCDMA:B1/B6/B8/B19

    Antenna2 removable 5dBi antenna
    Interface

    1 PCI-E slot

    1 SIM card slot

    1 10/100M WAN port(Auto MDI/MDIX)
    4 10/100M LAN port(Auto MDI/MDIX)

    LEDPower,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
    ButtonReset/WPS
    Max Power consumption< 12W
    Dimension(L*W*H)141*85*26MM
    Software
    WAN TypePPPoE,Dynamic IP, Static IP
    Work Mode

    AP;

    Router;

    DHCPServer, Client, DHCP Client List, Address Reservation
    Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
    Firewall Security

    Dos, SPI Firewall

    IP Address Filter/MAC Address Filter/ Domain Filter

    IP and MAC Address Binding

    DDNSSupport
    VPN Pass-ThroughPPTP, L2TP, IPSec (ESP Head)
    Band ControlSupport
    Static RouterSupport
    System LogSupport
    Other FunctionMac clone
    NTP Synchronize
    Web firmware upgrade
    Others
    Work Environments

    Working temperature: -10℃ to 80℃;

    Storage temperature: -40℃ 85℃;

    Working humidity: 10% to 90%RH non-condensing

    Storage humidity: 5% to 90%RH non-condensing

    Adapter12V 1A
    AuthenticationFCC & CE certifications

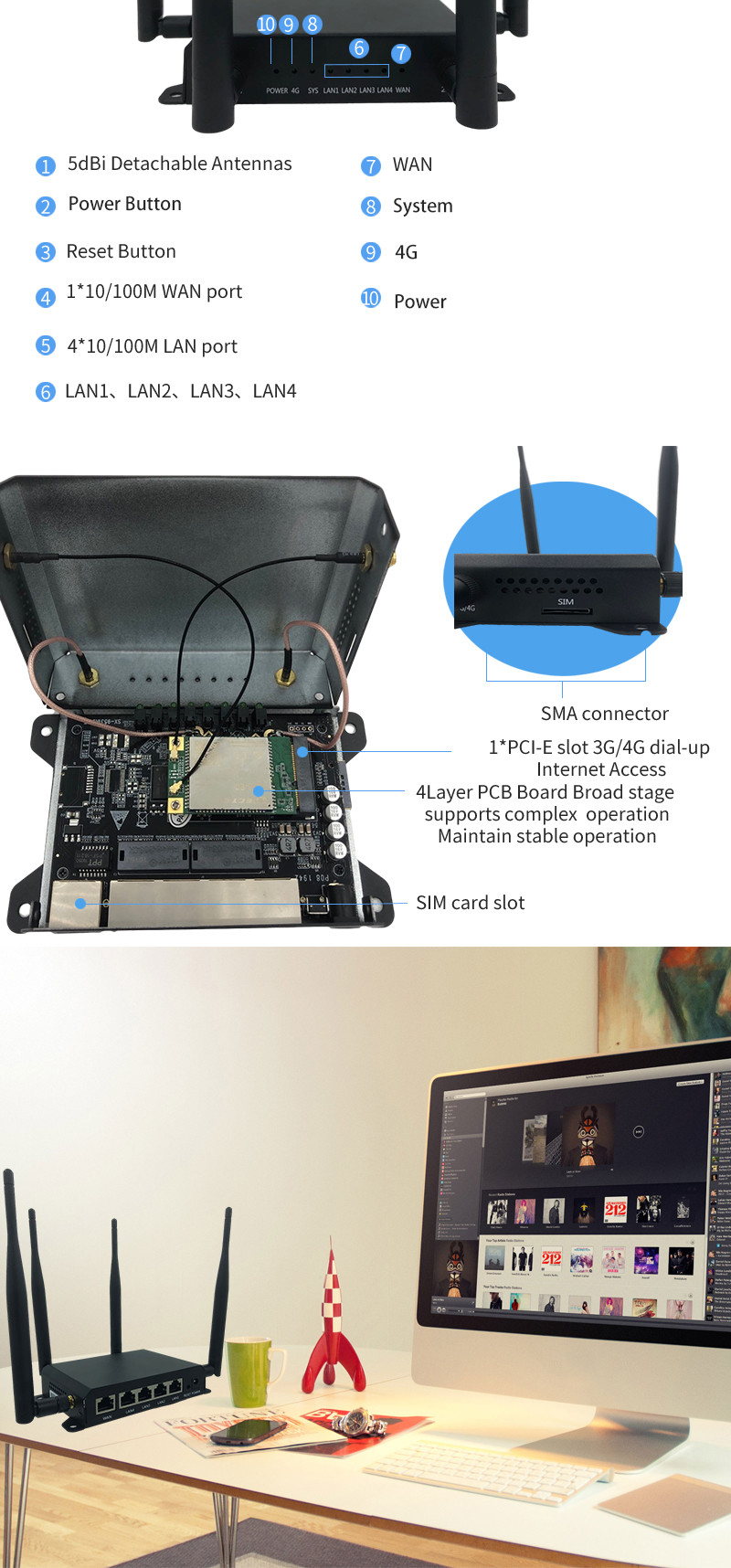

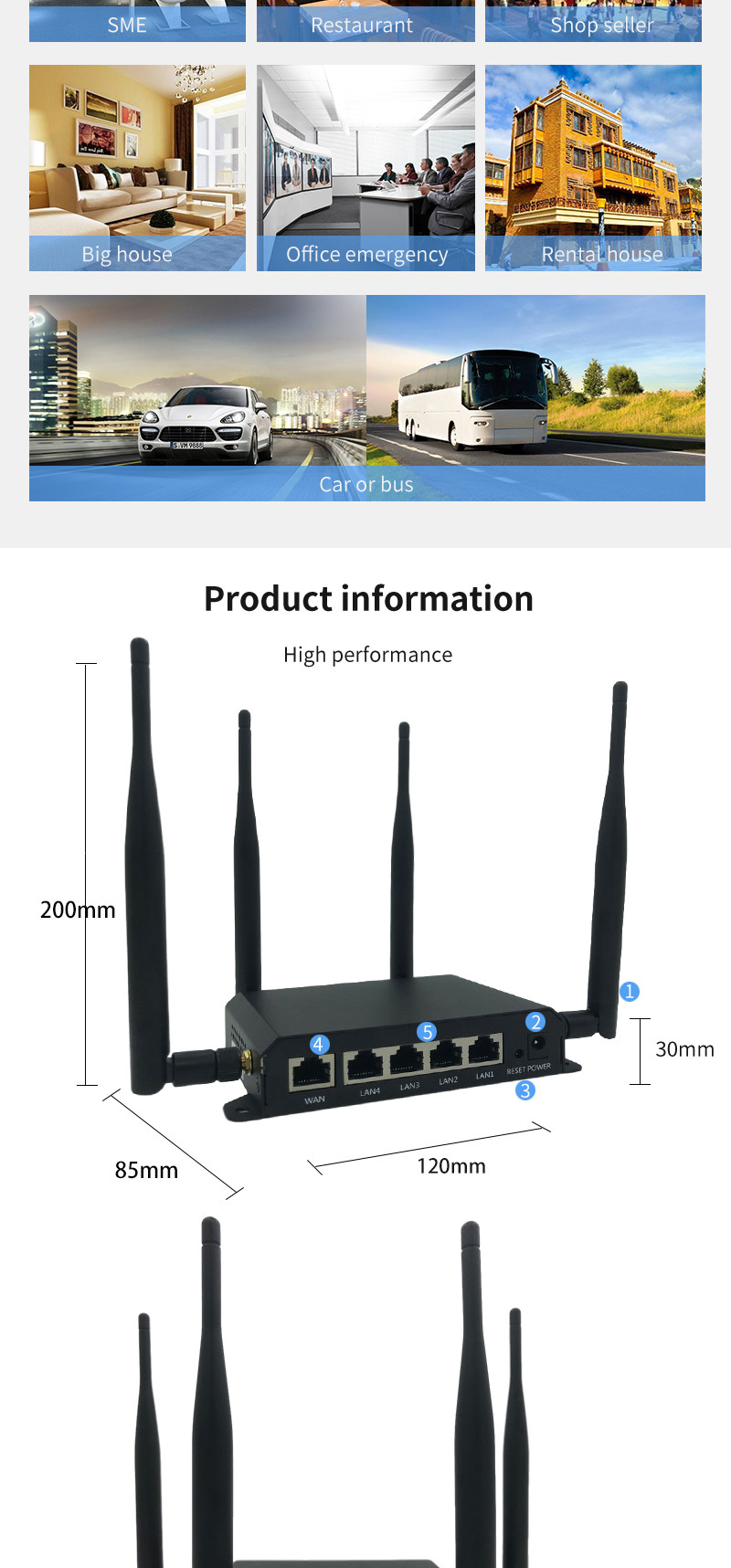

    Products Pictures

    12V DC Power 4G Industrial Router 4g Lte Router Chip QCA953112V DC Power 4G Industrial Router 4g Lte Router Chip QCA953112V DC Power 4G Industrial Router 4g Lte Router Chip QCA953112V DC Power 4G Industrial Router 4g Lte Router Chip QCA953112V DC Power 4G Industrial Router 4g Lte Router Chip QCA953112V DC Power 4G Industrial Router 4g Lte Router Chip QCA9531


    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
