4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot

Shenzhen Huasifei Technology Co., Ltd.
Contact Now
    Buy cheap 4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot from wholesalers

    Buy cheap 4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot from wholesalers
    • Buy cheap 4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot from wholesalers
    • Buy cheap 4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot from wholesalers

    4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS281
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot

    300Mbps WS281 4g router chip MT7628 Openwrt system 4g wifi router with SIM slot


    Product Description

    WS281 is an industrial 4G router product, which accesses the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then shares the Internet network through wireless WiFi 4 and 100Mbps wired LAN.


    Product Main Features

    • Using MT7628 program, MIPS24KEc architecture CPU, main frequency up to 580MHZ
    • Main chip integrated baseband 2.4G WIFI rate up to 300Mbps,
    • 128MB DDR2 integrated in the main chip, with 16MB Nor Flash
    • 1WAN, 3LAN full 100M adaptive network port, support auto flip (Auto MDI/MDIX)
    • Support "one key brushing mode", that is, long press the reset button to boot into rescue brushing mode
    • Built-in PCIE/LCC chip module, can be used to connect to 4G communication module
    • External standard SIM card (large card) interface
    • External high gain omni-directional antenna, wireless signal 360 degrees without dead ends
    • Automatic reboot of the device when the routing system fails

    ​Specification

    ProcessorMT7628 MIPS24KEc architecture CPU, main frequency up to 580MHZ
    2.4G WIFI chip

    MT7628 integrated 2.4G WIFI function

    IEEE 802.11n/g/b, maximum rate 300Mbps

    MemorySDDR2 128MB
    Flash MemoryNor Flash 16MB
    Network port

    WAN port 1, 100Mbps support auto-flip (Auto MDI/MDIX)

    Compliant with IEEE 802.3/802.3u

    LAN ports 3, 100Mbps support auto-flip (Auto MDI/MDIX)

    Compliant with IEEE 802.3/802.3u

    SIM card interfaceSIM card interface 1 (can support built-in SIM card)
    Power connectorDC5.0*2.1MM interface
    ButtonReset button 1pc
    AntennaOmni-directional 5dbi 2.4G external antenna 2pcs
    Omni-directional 5dbi 4G external antenna 2pcs
    4G module interfaceBuilt-in PCIE/LCC 4G module interface

    Details Images

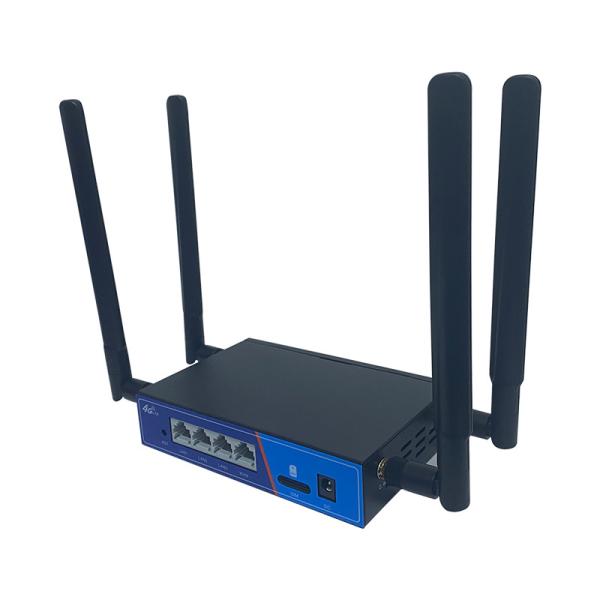

    4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot4 External Antennas Industrial 4g Routers Chip MT7628 Openwrt System With SIM Slot


    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
