300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port

Shenzhen Huasifei Technology Co., Ltd.
Contact Now
    Buy cheap 300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port from wholesalers

    Buy cheap 300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port from wholesalers
    • Buy cheap 300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port from wholesalers
    • Buy cheap 300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port from wholesalers

    300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS170N
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port

    300Mbps 4g Wifi Router Chipset MTK7628 2LAN/WAN Port 4G Router With SIM Slot


    Product Description

    WS170-N is a flagship wireless communication product developed based on 4G network requirements, with a wireless rate of up to 300Mbps, which can meet the needs of small networks such as offices and homes for stability, security, and simple access to the Internet. It can also be applied to the Internet of Things communication industry. Provide users with wireless long-distance data monitoring, collection and transmission functions. Full Netcom 4G network access, fully compatible with 4G/3G/2G network, equipped with 2 10/100M adaptive Ethernet LAN interfaces, connected to the internal LAN; 1 10/100M adaptive Ethernet WAN interface, providing wired Broadband access.


    Features

    Enterprise-level design, 300M wireless speed
    Using a professional wireless processor, the wireless rate is as high as 300Mpbs, and the barrier-free transmission distance is about 100 meters. Independent professional power amplifier and low-noise amplifier, stable and smooth with 30 machines, no freeze, no drop-off.


    Easy to set up, flexible and multi-purpose
    It supports 4G and wired broadband access, and has a built-in quick setup wizard to guide customers to complete configuration easily. The default 4G access mode, just plug in the card and use; WAN access network, automatically switch to routing mode. Support 4G and cable two broadband access methods, support mobile Unicom Telecom 4G/3G/2G network card, and have 4G Internet access advantages in places where wired bandwidth cannot reach, 4G and wired automatic switching, never disconnected.

    A variety of security strategies to ensure network data security at all times
    Support WPS, WPA, WPA2 wireless security access, support SSID hiding, guest network, black and white list, LAN port isolation, VPN, ALG, MAC filtering, IP filtering, NAT setting, DDOS to effectively protect network security, and ensure user network data security at all times.


    A variety of status statistics, always know the working status of the equipment
    Built-in traffic statistics, support traffic package settings, easy to understand the monthly traffic usage; multi-state work indicator, real-time work log view, always know the working status of the device.


    Never-ending product feature updates and performance optimization
    The R&D team adhering to the spirit of craftsmanship has been constantly updating functions to meet the needs of various network environments simply and efficiently; meticulous performance optimization ensures the provision of the highest quality network products and improves user experience.


    Specifications


    Hardware specification
    Product numberWS170-N
    main chipMTK7628NN 300M High-performance enterprise chips
    main frequency580MHz
    wireless technology802.11b/g/n 300M MIMO technology
    Flash memory16MB
    Memory128MB

    device interface

    WAN 10/100Mbps Adaptive Network Interface *1

    LAN 10/100Mbps Adaptive Network Interface *2

    Standard SIM card,standard card

    Antenna2.4G:2T2R ;4G LTE:2T2R ,4G Detachable antenna
    Power consumption<12W

    press key


    POWER/RESET/WPS&WiFi multiplex button
    Reset button: 1 reset button, long press for 5 seconds to restore factory settings
    POWER button: Short press to turn on, then short press to turn off
    indicator lightPOWER,WiFi,2.4G,WPS,lights, telephone
    Product SizeN/A
    Wi-Fi features
    RF parameters802.11b/g/n:2.4~2.4835GHz
    modulation mode

    11b:DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps

    11g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps

    11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

    Transmission rate

    11b: 1/2/5.5/11Mbps

    11g: 6/9/12/18/24/36/48/54Mbps

    11n: up to 300Mb

    Receiver sensitivity

    11b: <-84dbm@11Mbps;

    11g: <-69dbm@ 54Mbps;

    11n: HT20<-67dbm HT40: <-64dbm

    transmit power

    11b: 18dBm@ 1~11Mbps

    11g: 16dBm @ 6~54Mbps

    11n: 15dBm@ MCS0~7

    IEEE 802.3(Ethernet)

    IEEE 802.3u(Fast Ethernet)

    IEEE 802.11b/g/n(2.4G WLAN)

    communication standardWPA/WPA2 Security mechanism (WPA-PSK using TKIP or AES)
    4G features
    Network standard/GNSSEC200A
    LTE-FDD (support hierarchical reception)B1/B3/B5/B8
    LTE-TDD (support hierarchical reception)B38/B39/B40/B41
    WCDMAB1/B8
    TD-SCDMAB34/B39
    CDMAB1/8
    GSMB3/8
    GNSS functionGPS,GLONASS,BeiDou/Compass,Galileo,QZSS

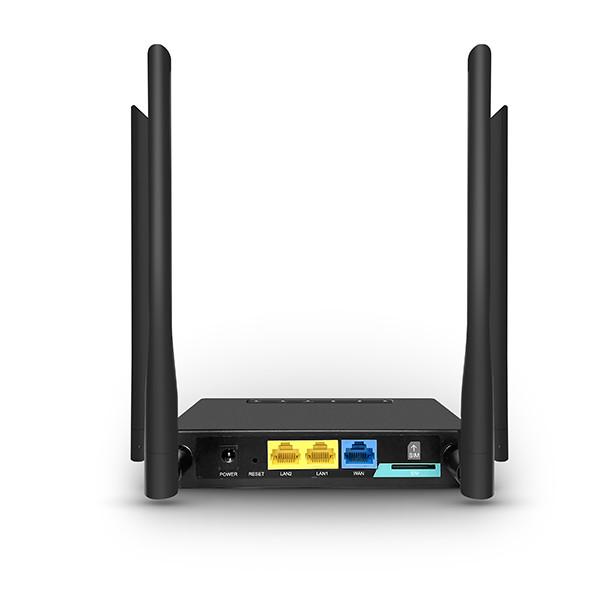

    Details Images
    300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port300Mbps 4g Wifi Router With Sim Card Slot MTK7628 2LAN / WAN Port

    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
