300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n

Shenzhen Huasifei Technology Co., Ltd.
Contact Now
    Buy cheap 300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n from wholesalers

    Buy cheap 300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n from wholesalers
    • Buy cheap 300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n from wholesalers
    • Buy cheap 300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n from wholesalers

    300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS7628-5G
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n

    300Mbps 4g Lte Router WAN/LAN Port Black 4G Industrial Router With SIM Slot


    Product Description

    WS7628-4G motherboard uses the latest MT7628AN platform of the United Development Section. This new SoC provides high data transmission for gateway data, voice and image applications in smart home, and consumes much less power than other similar products on the market. HL7628 allows equipment manufacturers to produce router-related products at the lowest BOM cost.
    Integrating 2T2R 802.11n Wi-Fi radio frequency and 580MHz MIPS 24KEc CPU, the power consumption is 18% lower than other chipsets on the market, and it has excellent wireless communication performance and throughput, so that consumers can easily control their home network, online household appliances and cloud services at home or far away. It can be used for indoor and outdoor wireless AP, information interception, WIFI signal relay, small car-borne WIFI, image and video return, express cabinet, charging pile, vending machine, industrial automation remote control, other Internet equipment integration and company-level standby network applications. The main features of this motherboard are: wide power supply range, low power consumption, modular design, multi-function board. Customers can choose different configurations according to their actual situation, saving customer development costs and development cycle. In addition, we provide secondary development software and hardware technology support, as well as a variety of customization and other full range of services, convenient for customers to quickly do integration, professional application promotion.


    Specification

    Hardware specification
    Product modelWS7628-4G
    Main chipMT7628AN/580Mhz
    DDRDDR2 64MB
    FLASHSPI 8MB
    Protocol standardIEEE802.11b/802.11g/802.11n/802.3/802.3u
    Wireless rate2.4g 300Mbps
    Working frequency band2412 MHz-2484MHz(channel 1 -channel 14)
    4G Working frequency band

    LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8

    (Frequency band can be selected)

    antennaA detachable 4,000-bar receiving antenna or sucker antenna
    Interface

    One SIM interface;

    Two GPIO inputs and outputs.

    A 10/100M adaptive WAN port supporting automatic flip (Auto MDI/MDIX)

    A 10/100M adaptive LAN port supporting automatic flip (Auto MDI/MDIX)

    LEDFrom left to right are WAN headlamp, LAN headlamp, Wifi headlamp, 4G headlamp and system running status lamp.
    ButtonReset
    power adapterDC 9V-24V/1A
    Power Supply SupportedNO
    Maximum Power< 9W
    Software specification
    Factory default settings

    IP :192.168.1.1

    User/password:root/admin

    WAN access modePPPoE, Dynamic IP, Static IP
    Working mode

    AP;

    ROUTER;

    DHCP Server

    DHCP server;

    Client list;

    Static address allocation;

    support systemOriginal factory SDK,openwrt,
    Virtual Server

    Port forwarding

    DMZ host

    security setting

    Client filtering

    Mac address filtering

    URL filtering

    DDNSSupport
    Other
    work environment

    Working temperature: - 20 C ~ 75 C storage temperature: - 50 C ~ 95 C humidity: 0 ~ 90%, no condensation voltage input: 9 ~ 24V DC

    Standby power consumption: < 1.5W

    parts

    Power adapter 1 PCS (national standard 24V/1A line length 1.5M)

    Dark Blue Wire 1 m 1 PCS

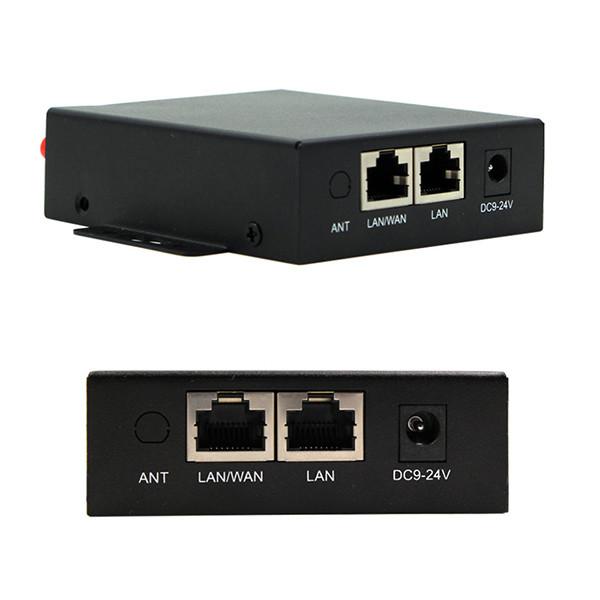

    Details Images

    300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n

    300Mbps 4G Industrial Router WAN/LAN Port Integrating 2T2R 802.11n


    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
