Gigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-Gl

    Buy cheap Gigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-Gl from wholesalers

    Buy cheap Gigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-Gl from wholesalers
    • Buy cheap Gigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-Gl from wholesalers
    • Buy cheap Gigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-Gl from wholesalers

    Gigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-Gl

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS1688
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Gigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-Gl

    Gigabit Dual Band Wifi 5g Openwrt Router RM500Q-Gl TM520Q-Gl Modem Router 5g


    Product Description

    A high-performance industrial-grade 5G WiFi6 router product supporting 802.11ax technology, using MT7621+MT7915+MT7975 high-performance SoC kit, with 16MB flash memory and 256MB memory, industrial-grade circuit design, supporting IEEE802.11a/b/g/n/ ac/ax protocol, work in 2.4G & 5.8G wireless frequency band, and meet the needs of 128 people at the same time wireless high-speed Internet access. Full Gigabit network interface, supports up to 573Mbps wireless access speed in 2.4G 802.11ax mode, supports up to 1201Mbps wireless access speed in 5.8G 802.11ax mode, supports single SIM and dual SIM card modes, supports installation of 4G5G modules , has the characteristics of high performance, high gain, high receiving sensitivity, high bandwidth, high access number, etc., not only can cover a larger range, but also can provide higher wireless transmission performance and stability.

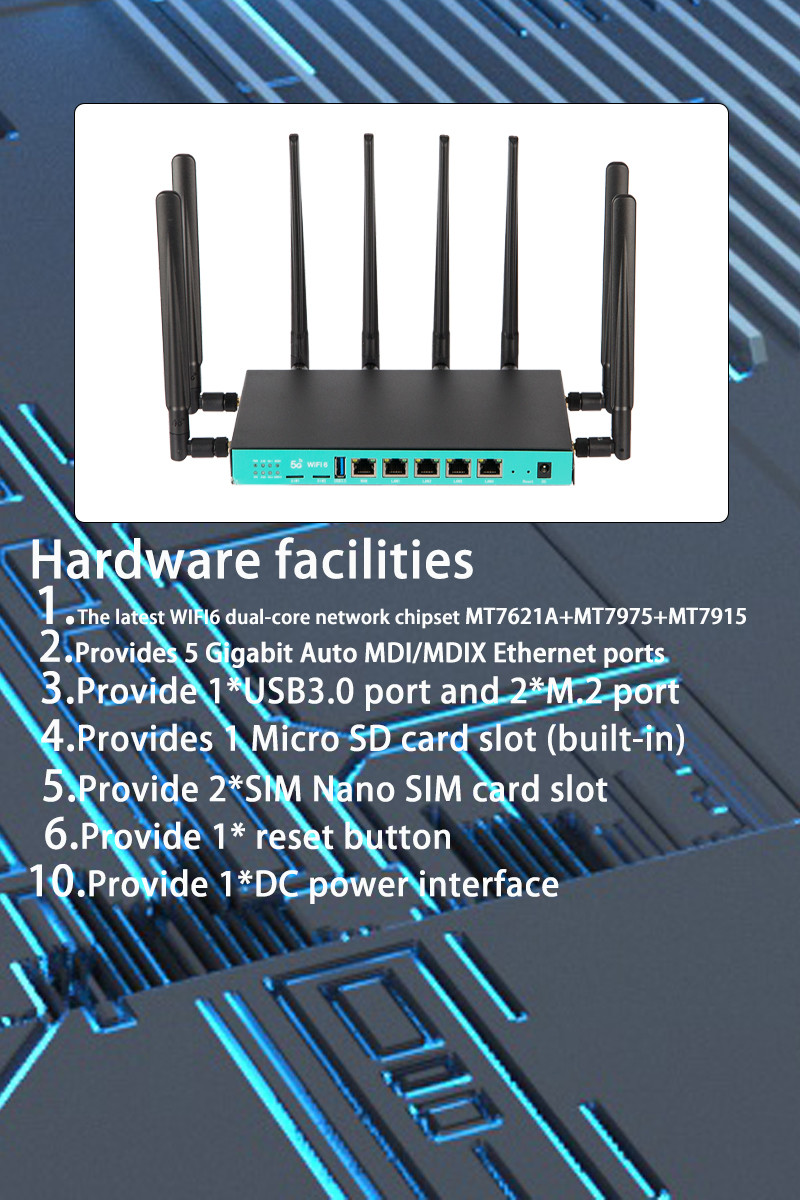

    Hardware facilities

    • The latest WIFI6 dual-core network chipset MT7621A+MT7975+MT7915
    • Provides 5 Gigabit Auto MDI/MDIX Ethernet ports
    • Provide 1*USB3.0 port and 2*M.2 port
    • Provides 1 Micro SD card slot (built-in)
    • Provide 2*SIM Nano SIM card slot
    • Provide 1* reset button
    • Provide 1*DC power interface

    Specification


    WS1688/Hardware Specifications
    Hardware Specifications

    MT7621A+ MT7975+MT7915 Dual-core WIFI6

    DDR3 RAM 256MB

    SPI FLASH 16MB
    Protocol standard

    2.4G WiFi 2*2 802.11b/g/n/ax(Theoretical maximum speed up to 573Mbps)

    5.8G WiFi 2*2 802.11a/n/ac/ax(Theoretical maximum speed up to 1201Mbps)

    1024QAM Ultra-high-speed access rate,OFDMA Ultra-high-density user access

    MU-MIMO/MU-OFDMA Up/Down

    BSS Color Spatial multiplexing
    Wireless rateDual-band concurrency up to 1800Mbps
    Working frequency2.4GHz 5.8GHz
    4G5G frequency bandFrequency bands can be customized, support domestic and foreign customization
    Antenna2*5dbi high-gain omnidirectional wifi antennas, 6*5dbi high-gain omnidirectional 4G5G antennas (optional)
    interface

    1*10/100M/1000M WAN port,automatic MDI/MDIX

    4*10/100M/1000M LAN port,automatic MDI/MDIX

    1*USB 3.0 port

    2*M.2

    2*Nano SIM card slot

    1*SD card
    LEDpower/2.4G/5.8G/5G-1/5G-2/SYS/USB/Mesh
    Button1* Reset button
    Power AdapterDC 12/2000mA
    Maximum power consumption< 24W

    Details Images

    Gigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-GlGigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-GlGigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-GlGigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-GlGigabit Dual Band Modem Router 5g Openwrt RM500Q-Gl TM520Q-Gl


    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
