3000Mbps WIFI6 Dual Band Ceiling Mounted Wireless AP Wifi Access Point Poe AP
Product Description
Adopting IPQ5018 chip, supporting a 160MHz bandwidth, greatly expanding user capacity, and supporting a maximum of 128 users;
The 2.4GHz frequency band has strong compatibility, long transmission distance, low interference in the 5GHz frequency band, dual frequency concurrency, and a wireless transmission rate of up to 3000Mbps, better meeting the wireless coverage needs of crowded places;
Support seamless roaming, smoother switching, and enhance the wireless experience of each user;
Support automatic channel optimization, reduce mutual interference between channels, and optimize the overall performance of wireless networks;
Built-in 2 2.4G antennas and 2 5G antennas to improve the wireless signal quality in the AP coverage area;
Support unified management of AC controllers, one click configuration distribution, saving manual maintenance costs;
Support 802.3at protocol, standard 48V PoE power supply, plug and play, more flexible and convenient power wiring;
Suitable for various crowded scenarios, such as high-speed railway stations, subway stations, terminal buildings, hotels, hospitals, schools, scenic spots, docks, shopping malls, and other application scenar
Specification
| CPU | IPQ5018 + QCN6102 |
| DDR3 | 512MB |
| FLASH | SPI NAND 32MB |
| Wireless Protocol Standards | 2.4G:support IEEE 802.11 b/ g/ n/ ac/ax 5G:support IEEE 802.11 a/ n/ac/ax |
| Wireless operating frequency band | 2.4GHz:2.4GHz–2.484GHz 5GHz:5.150GHz~5.825GHz |
| Wireless maximum speed | 2.4G provides up to 574Mbps access rate 5.8G provides up to 2402Mbps access rate |
| 2.4G antenna | 2 built-in antennas, gain:4dBi |
| 5G antenna | 2 built-in antennas, gain:4dBi |
| Maximum supported wireless access quantity | 120+ |
| network interface | 1 10/100/1000M adaptive RJ45 interface, supporting 48V POE power supply |
| control port | 1 Console port |
| Reset switch | 1 RESET reset button (press and hold for 10-15 seconds to restore the default factory settings) |
| pilot lamp | WAN port indicator light, LAN port indicator light; Three color lights (three different colors represent: SYS red, 2.4G/WIFI green, 5.8G/WIFI blue) |
| Power supply mode | Standard POE power supply, supporting 802.3at protocol; DC 12V 1.5A. |
| Maximum power consumption of the entire machine | 22W |

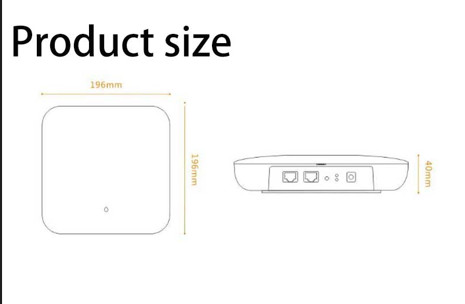

| Product size | 196mm×196mm×40mm |
| weight | 1kg |
| ESD | Air discharge+/-8K, contact discharge+/-4K |
| surge | Common mode 2K, differential mode 1K |
| Appearance material | Imported high-quality high-temperature resistant PC material |
| Appearance color | white |
| protection grade | IP31 |
| Installation method | Ceiling mounted installation |
| product accessories | AX3000 WIFI6 Dual Band Ceiling Mounted Wireless AP * 1 User manual * 1, warranty card * 1, certificate of conformity * 1 |
| Usage environment | Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10%~90% RH non condensing Storage humidity: 5% -95% RH non condensing |
| Software specifications |
| Working mode | Fat and thin in one, Thin AP mode (FIT AP): managed uniformly by the wireless controller (AC) Fat AP mode (FAT AP): independent web page management |
| AC unified management | Support |
| Wireless function | SSID broadcast | Support |
| SSID hide | Support |
| Chinese SSID | Support |
| multiple SSID | Support |
| SSID merge | Support for combining multiple frequency bands of 2.4GHz and 5.8GHz into a common SSID |
| wireless encryption | WPA,WPA2,WPA-PSK,WPA2-PSK |
Details Images
