    300Mbps 4g Wireless Router 12V DC Power 4g Lte Router With SIM Slot

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS300A
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    300Mbps 4g Wireless Router 12V DC Power 4g Lte Router With SIM Slot

    High Quality 300Mbps 4g Wireless Router 12V DC Power Router 4g Lte With SIM Slot

    Product features

    • Industrial grade design, equipped with PCIE 4G modules;
    • 4G to wired to WIFI signal conversion, meeting various application scenarios;
    • With a large number of devices, it is easy to connect to various wireless terminal devices;
    • No wiring, bid farewell to wired broadband, flexible installation;
    • Free card replacement, plug and play, with network access for card insertion;

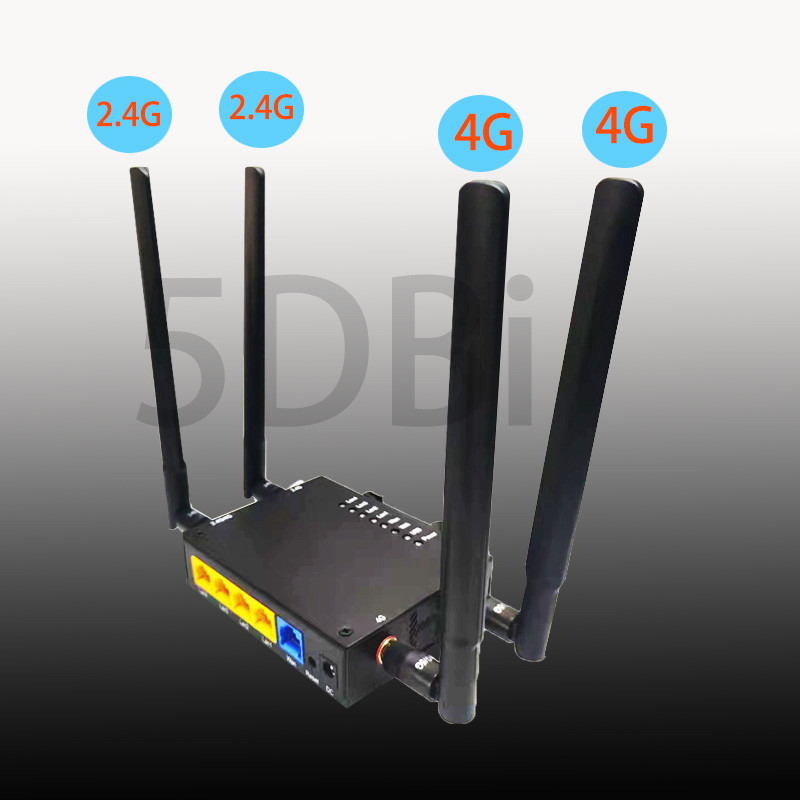

    • Two 2.4G and two 4G high gain omnidirectional antennas are installed externally, with strong penetration and stable signal.

    Specification

    Hardware specifications

    hardware system

    master control MT7620A
    FLASH 16MB
    DDR 128MB
    4G module EC200A/EC20/EC25/EP06
    Wireless parameters Protocol standards IEEE 802.11 b/ g/ n
    Working frequency band 2.4GHz:2412MHz~2472MHz
    Wireless rate 300Mbps Max
    4G rate

    LTE-FDD:Maximum downlink speed 150Mbps, maximum uplink speed 50Mbps

    LTE-TDD:Maximum downlink speed 130Mbps, maximum uplink speed 30Mbps

    Transmission power 18dBm Max
    physical interface network interface

    1 10/100 Mbps RJ45 Ethernet WAN port

    4 10/100 Mbps RJ45 Ethernet LAN ports

    Power supply interface

    1 DC power port, supporting 12V DC power supply

    SIM card interface 1 standard pop-up Mini SIM card slot
    Key switch 1 RESET reset button
    PCI-E interface 1 built-in PCI-E interface (optional or replaceable 4G modules of different brands)
    Antenna interface

    2 standard SMA interfaces for 4G antennas (external interface, interchangeable with different antennas)

    2 WIFI antenna standard SMA interfaces (external interface, can replace different antennas)

    pilot lamp LED indicator light Respectively POWER,4G,WIFI,WAN,LAN1,LAN2,LAN3, LAN4
    Power supply/power consumption Power supply method

    DC 12V~1A power supply

    product accessories main engine Industrial grade intelligent 4G router host * 1
    DC adapter DC 12V/1A
    antenna

    Two 5dBi high gain omnidirectional WIFI antennas

    Two 5dBi high gain omnidirectional 4G antennas

    other User manual * 1, warranty card * 1, certificate of conformity * 1
    Appearance/Packaging Product size

    External dimensions (length * width * height): 110mm * 90mm * 30mm (excluding antenna)

    Antenna height: 190mm

    Appearance material Iron shell, frosted surface
    Appearance color Black (customizable appearance color)
    weight 1.5kg
    other Protection level IP31,2KV lightning protection
    Installation method Desktop and wall mounted
    Usage environment

    Working temperature: -10 ~55

    Storage temperature: -40 ~70

    Working humidity: 10%~90% RH non condensing

    Storage humidity: 5%~95% RH non condensing

    Details Images

    300Mbps 4g Wireless Router 12V DC Power 4g Lte Router With SIM Slot300Mbps 4g Wireless Router 12V DC Power 4g Lte Router With SIM Slot300Mbps 4g Wireless Router 12V DC Power 4g Lte Router With SIM Slot300Mbps 4g Wireless Router 12V DC Power 4g Lte Router With SIM Slot300Mbps 4g Wireless Router 12V DC Power 4g Lte Router With SIM Slot300Mbps 4g Wireless Router 12V DC Power 4g Lte Router With SIM Slot

    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    A: We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
