Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router

Shenzhen Huasifei Technology Co., Ltd.
Contact Now
    Buy cheap Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router from wholesalers

    Buy cheap Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router from wholesalers
    • Buy cheap Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router from wholesalers
    • Buy cheap Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router from wholesalers
    • Buy cheap Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router from wholesalers
    • Buy cheap Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router from wholesalers
    • Buy cheap Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router from wholesalers
    • Buy cheap Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router from wholesalers

    Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS1698
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router

    Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router


    Product Description

    Adopt MT7981B main chip, main frequency up to 1.3GHZ; With independent MT7976CN WIFI6 chip, total speed up to 3000Mbps; High-speed 512 DDR3, with 128MB SPI Nand Flash(16GB EMMC optional)

    1WAN+4LAN 1000M adaptive network port ;
    Support "one-key flashing mode", long press the reset button to enter the recovery mode;
    Support "one key " MESH network;
    Built-in dual M.2 interfaces, can be used to install 5G cellular modules;
    External standard Nano SIM card slot ,also built-in eSIM card slot;


    Specification


    WS1698 Hardware Specifications
    Hardware Specifications

    MT7981B+MT7976CN+MT7531AE Dual Core 1.2GHZ

    DDR3 memory 512MB

    SPI NAND FLASH 128MB(16GB EMMC optional)

    WIFI ChipMT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
    Protocol StandardsIEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u

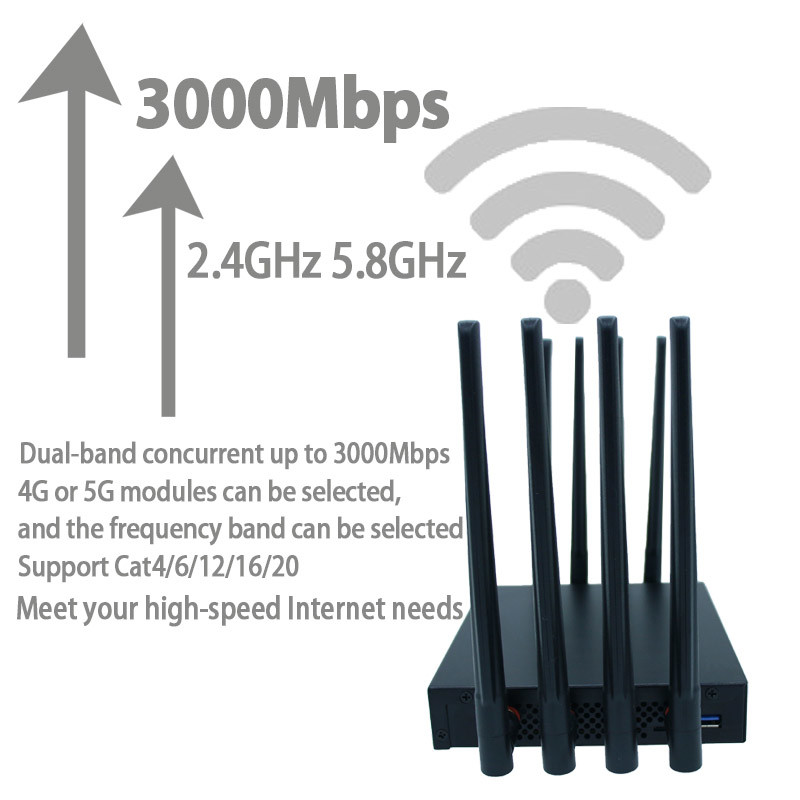

    Wireless RateDual-band concurrent up to 3000Mbps
    Operating band2.4GHz 5.8GHz
    4G 5G Modem4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20
    Output Power

    11n:17dBm±1dBm

    11g: 17dBm±1dBm

    11b: 19dBm±1dBm

    11a: 19dBm±1dBm

    11ac: 18dBm±1dBm

    11AX: 19dBm±1dBm

    Receiving sensitivity

    11N HT20 MCS7: -72dBm

    11N HT40 MCS7: -69dBm

    11G 54Mbps: -74dBm

    11B 11Mbps: -86dBm

    11A 54Mbps: -73dBm

    11AC VHT20 MCS8: -66dBm

    11AX VHT20 MCS8: -66dBm

    Antenna

    4 x 7dbi high gain omni-directional wifi antennas,

    4 x 5dbi high gain omni-directional 4G5G antennas

    Interface

    1*10/100M/1000M WAN port with automatic MDI/MDIX with LED

    4*10/100M/1000M LAN ports, auto MDI/MDIX with LED

    1*USB 3.0 port

    1*PCI-E

    1*M.2

    1*SIM card

    1*SD card(SMD SD memory card)

    LEDPower/WIFI/4G/5G
    Button1 Reset button,1 MESH button
    Power adapterDC 12/3000mA
    Maximum power consumption< 24W
    Color schemeBlack
    Accessories and Packaging

    Egg separator paper tray 32*21*6cm *1PCS

    Whole box: 43.1*28.5*34.8 10PCS

    Power adapter 12V/2A *1PCS

    Super Category 5 network cable *1PCS


    Details Images

    Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte RouterGigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte RouterGigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte RouterGigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte RouterGigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router


    FAQ

    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

    Q3. Do you have any MOQ limit?

    A: Low MOQ, 1pc for sample checking is available.

    Q4. Do your products meet our standards?

    A: Yes, almost all our products have CE,ROHS,FCC,etc.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

    Q6. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
    Q7. What is your payment term?
    We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
    Q8. Can you customized logo and packaging?
    A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
