    5G Wifi Router PCB Board Openwrt System 1 SIM Card Support DC 12V 2A

    Ask Lasest Price
    Brand Name : HUASIFEI
    Model Number : WS1208V2-PCBA
    Certification : FCC/CE/ROSH
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000PCS/45 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    5G Wifi Router PCB Board Openwrt System 1 SIM Card Support DC 12V 2A

    Dual Band Routers 5g PCBA Can Use The L850 L860 Module Duabl Core 4g Router


    Product Description

    WS1208V2 uses the latest MTK wireless solution ,the MT7621A , the clock frequency is as high as 880MHZ, provide 5 gigabit Auto MDI/MDIX Ethernet port, 1×USB 2.0 port, 1×PCI-E , 1×M.2 ,1×Micro SD card


    Wireless:
    Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps


    Software:
    Preload the OpenWRT.


    Product Feature

    • Latest Dual core network chipset MT7621A,Clock Frequency get 880Mhz
    • Provide 5 gigabit Auto MDI/MDIX Ethernet port
    • 1 USB2.0 port and 1 PCI-E M.2
    • Provide 1 Micro SD Card slot
    • support IEEE IEEE802.11AC/N/G/B/A wireless protocol
    • The transmission rate get to 1200Mbps

    Specification


    Hardware Specification
    Main ChipsetMT7621A/Duabl Core /880Mhz
    RAMDDR3 RAM 256MB (MAX512MB)/DDR2 RAM 128MB(MAX 256MB)
    FLASHSPI FLASH 16MB (MAX32MB) Higher Flash, need to redraw the PCBA
    Protocol Standard

    IEEE 802.11ac,IEEE 802.11a

    IEEE 802.11n,IEEE 802.11g,IEEE 802.11b;
    IEEE 802.3,IEEE 802.3u;

    Wireless Rate

    5G : 900Mbps

    2.4G: 300Mbps

    Work Frequency2.4GHz/5G
    Interface

    1*10/100M/1000M WAN Port, Auto MDI/MDIX
    4*10/100M/1000M LAN Port, Auto MDI/MDIX

    1*USB 2.0 port

    1*PCI-E

    1*M.2

    1*SIM Card

    1*SD Card

    LEDPWR.SYS.5G.2.4G.5.8G.
    Button1*RESET
    Power consumption< 12W
    AdapterDC 12V2A
    Software
    Management

    IP:192.168.1.1

    USER/root admin/admin

    OSOpenWRT (14.07)
    WAN TypePPPoE,DynamicIP,Static IP
    Work Mode

    AP;

    Router;

    DHCPServer, Client, DHCP Client List, Address Reservation
    Port ForwardingVirtual Server, Port Triggering, UPnP, DMZ
    Firewall Security

    Dos, SPI Firewall

    IP Address Filter/MAC Address Filter/ Domain Filter

    IP and MAC Address Binding

    DDNSSupport
    VPN Pass-ThroughPPTP, L2TP, IPSec (ESP Head)
    Band CtrlSupport
    Static RouterSupport
    System LogSupport
    Other FunctionMac clone
    NTP Synchronize
    Web firmware upgrade
    Others
    Work Environments

    Operating Temperature:0℃ ~ 40℃;
    Storage Temperature:-40℃~ 70℃;

    Operating Humidity:10%~90% non-condensing
    Storage Humidity:10%~90% non-condensing

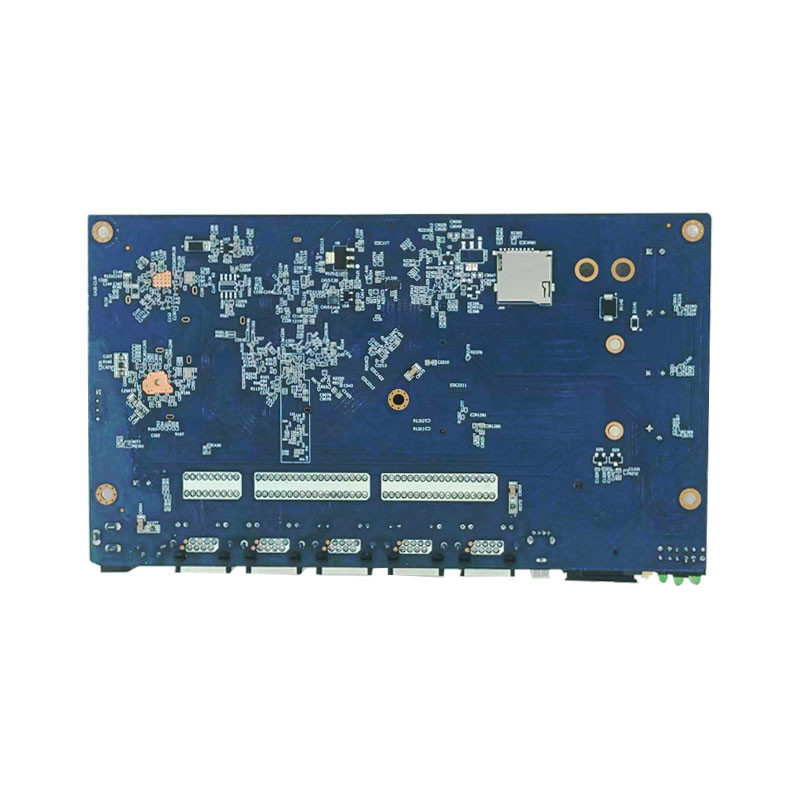

    Details Images

    5G Wifi Router PCB Board Openwrt System 1 SIM Card Support DC 12V 2A5G Wifi Router PCB Board Openwrt System 1 SIM Card Support DC 12V 2A5G Wifi Router PCB Board Openwrt System 1 SIM Card Support DC 12V 2A5G Wifi Router PCB Board Openwrt System 1 SIM Card Support DC 12V 2A5G Wifi Router PCB Board Openwrt System 1 SIM Card Support DC 12V 2A
